Handling liquid helium isn’t your average engineering job. With helium’s boiling point at -269°C—the lowest of any element—everything gets harder. You don’t just need good insulation; you need ultra-low heat leak, perfectly stable vacuum conditions, rock-solid pressure control in transit, and a way to keep helium from disappearing on you. That’s where our team comes in. We build on advanced vacuum-insulated pipes, flexible hoses, and dynamic vacuum pump systems, all designed so you can move and manage helium without losing sleep over leaks or losses. Our solutions lean on years of precision manufacturing and real cryogenic engineering know-how, so you get reliable systems customized for demanding jobs—research labs, chip plants, hydrogen projects, you name it.
Here’s the thing: At -269°C, helium doesn’t play by the usual cryo rules. Even a tiny bit of outside heat and you’ve got rapid evaporation, which isn’t just inconvenient—it’s expensive. That’s why cutting heat leak is job one. We do this by optimizing vacuum insulation, fine-tuning material choices, and making sure every piece of the system works together. It isn’t like working with liquid nitrogen—helium needs every pathway and connection engineered for the lowest thermal conductivity possible. In our systems, every pipe, hose, valve, and connector is built to fight heat transfer in all its forms—conduction, radiation, and convection. We use multi-layer insulation and advanced vacuum tech, making sure that, even in the harshest cryogenic environments, thermal performance stays exactly where you need it.
Phase Separator
Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Vacuum Insulation Performance and Heat Leak Control
2. Maintaining Long-Term Vacuum Stability
3. Critical Components for Safe Cryogenic Operation
4. Material Selection and International Manufacturing Standards
Vacuum Insulation Performance and Heat Leak Control
Quality vacuum insulation is at the heart of any efficient liquid helium ISO container system. When you pull out the gas molecules between the inner and outer pipes, you seriously cut down on convection heat transfer. Then, when you stack on some multilayer insulation, it blocks most of the radiation heat. Stainless steel does its part too — selected carefully, it keeps solid conduction low.

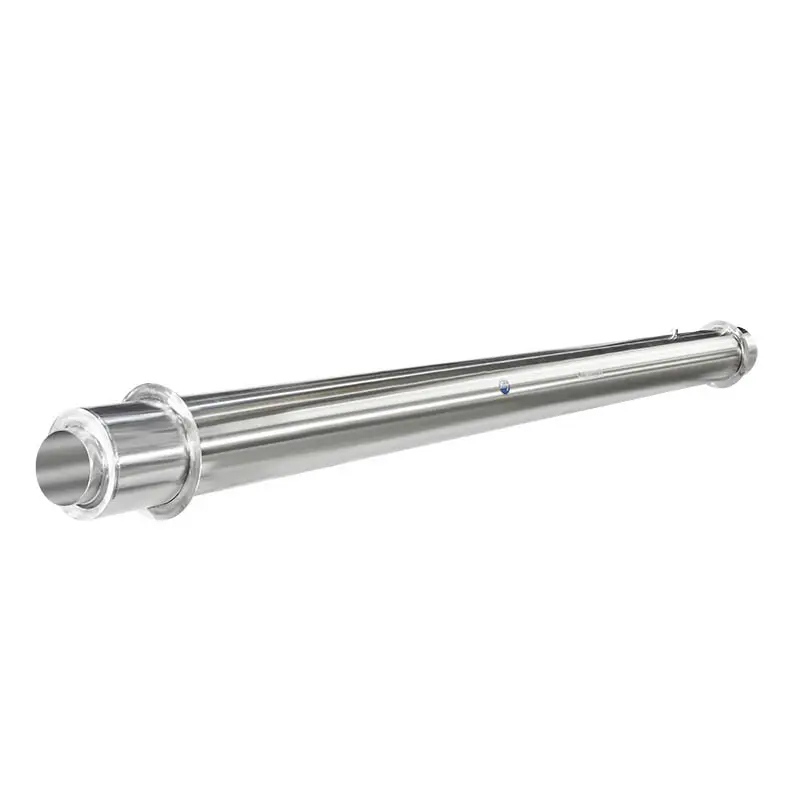

We designed our Vacuum Insulated Pipe for long hauls and tough environments. You get low thermal loss and solid mechanical strength. Forget the old conventional piping — our vacuum-insulated lines slash evaporation rates and boost efficiency. You see this technology just about everywhere: LNG terminals, chip plants, aerospace projects, and factories running on industrial gases.

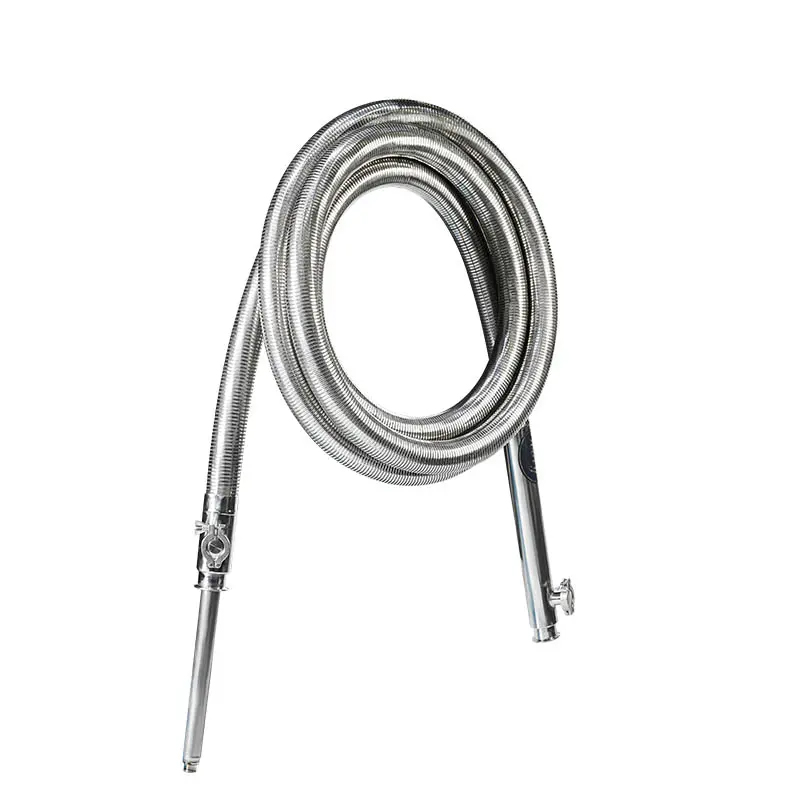

Things don’t always stay rigid, though. That’s why our Vacuum Insulated Flexible Hose is built for movement. It lets you make flexible connections without losing any real insulation power. ISO container systems need that flexibility during filling, unloading, or just getting hauled from A to B. The way we see it, the hose design really holds the entire system together. Reliable connections are everything.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
Keeping a liquid helium system running for years isn’t easy—one of the toughest hurdles is making sure the vacuum holds up over time. Even the tiniest leaks or a bit of gas sneaking in can mess with your insulation, drive up helium losses, and push operating costs higher.
That’s why we built our Dynamic Vacuum Pump System. It keeps a constant eye on the vacuum inside the insulation jacket, automatically pulling out any stray gases—whether they’re released from materials over time or slip in through small leaks. You get a steady, reliable vacuum throughout the life of your equipment, not just in the beginning.
For high-performance liquid helium setups, vacuum stability is everything. It keeps thermal efficiency high, cuts down on helium use, and makes the whole system more reliable. We combine solid vacuum chamber design, rigorous helium leak testing, and our dynamic vacuum tech to make sure you get consistent cryogenic performance, even when conditions get rough.
Critical Components for Safe Cryogenic Operation
A good ISO container cryogenic system does a lot more than just use insulated pipes. You need solid flow control, reliable pressure management, and proper phase separation to keep things running safely.

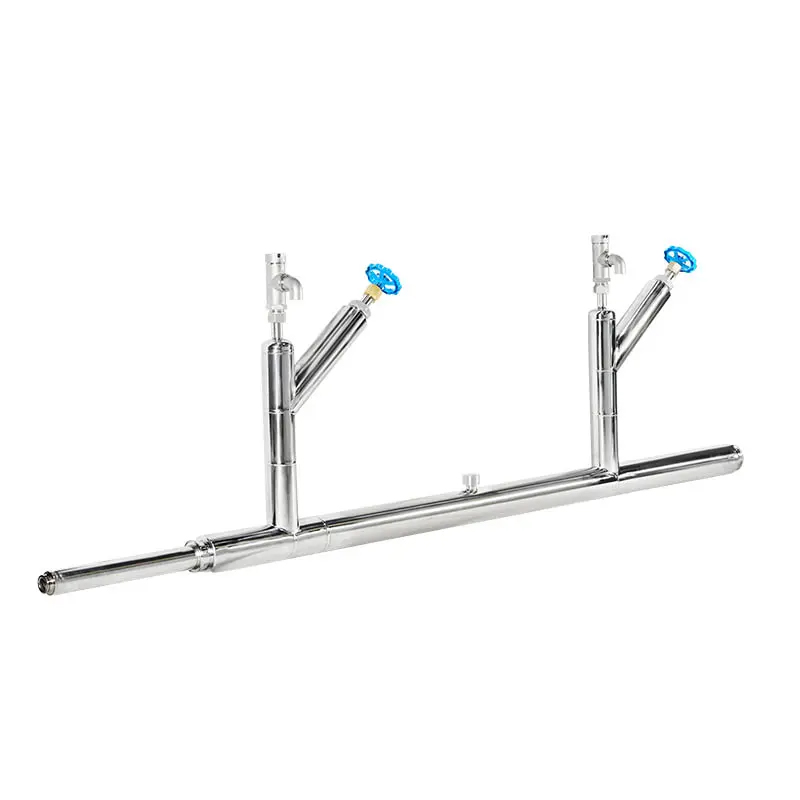

That’s where our Vacuum Insulated Valve comes in. It doesn’t just control the flow—it cuts down heat transfer in tough cryogenic environments. Regular metal valves actually leak heat, thanks to their design. Our vacuum insulation tackles that issue head-on, keeping thermal losses low and boosting the system’s efficiency.

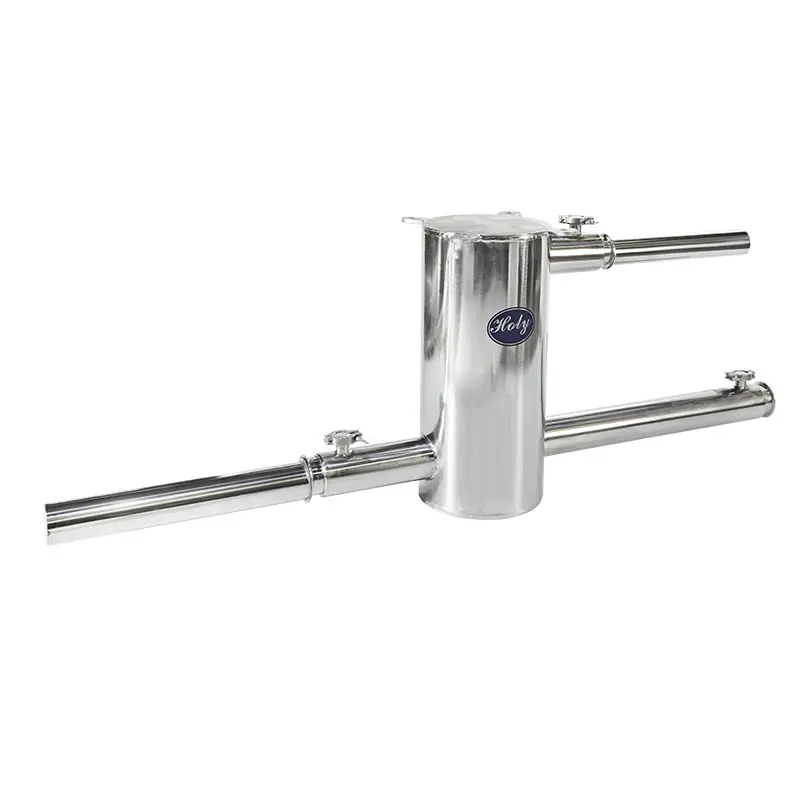

We also offer a Vacuum Insulated Phase Separator, which is crucial for keeping the liquid helium supply steady and pure. When you’re moving or transferring helium, pressure shifts can cause unwanted vapor buildup. The phase separator steps in to sort out the liquid from the gas, making the filling process smoother and protecting your equipment from unstable flows.
And if you don’t need huge tanks, our Mini Tank series delivers compact storage solutions with dependable vacuum insulation. They’re a perfect fit for labs, medical setups, or any specialized industry where you need flexible helium options—without sacrificing performance.
Material Selection and International Manufacturing Standards
Building reliable liquid helium systems isn’t easy—you need materials that can handle extreme cold without losing their strength. That’s exactly why stainless steel is the go-to choice. It stands up well in cryogenic temperatures, resists corrosion, and holds its structure no matter what.
At HL Cryogenics, we take all of this seriously. Every piece of cryogenic equipment we make meets international engineering standards. We’ve earned ASME, CE, and ISO certificates, so we’re set up to manufacture equipment that lines up with different countries’ requirements and unique project specs. Our engineering team sticks closely to industry standards like ASME and EN—so whether you’re an EPC contractor or a global industrial player, you know you’re covered.
Our process is hands-on and thorough. We go through precision welding, vacuum and pressure testing, helium leak checks, and overall performance verification. Each step makes sure the final product can handle real-world demands.
The push for better cryogenic systems is only getting stronger, especially in advanced research, semiconductors, hydrogen tech, and high-precision industries. There’s more focus than ever on reliability and cutting operating costs. Honestly, the secret to efficiency isn’t just quality parts—it’s integrated design, where everything works together seamlessly.
HL Cryogenics brings it all together. We use vacuum insulation technology, advanced manufacturing, and a deep understanding of international certifications to offer full cryogenic transfer solutions. Whether it’s Vacuum Insulated Pipes, flexible cryogenic hoses, or integrating a Dynamic Vacuum Pump System, we solve tough engineering challenges for clients worldwide.
If you’re getting ready to design a liquid helium ISO container system or you need tailored cryogenic equipment, reach out to HL Cryogenics. We’ll deliver a professional solution that fits your application, start to finish.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
