If you want your vacuum jacketed piping to last, pay attention to the basics: keep an eye on the vacuum, look out for leaks, check the mechanics, and catch insulation issues early—before you start losing heat or product. At HL Cryogenics, we don’t just monitor the numbers; we look for signs like weird frosting, more boil-off than usual, unsteady downstream flow, or odd pressure swings. If you keep your Vacuum Insulated Pipe or Flexible Hose in shape, you’ll get years of solid thermal efficiency. And when things get demanding, a Dynamic Vacuum Pump System helps the vacuum stay tight.
For finding those tiny leaks in vacuum-jacketed parts, helium leak testing does the job better than almost anything else. Don’t treat maintenance as just a patchwork fix—approach it as a system: pipes, hoses, valves, phase separators, ports, joints, and everything else connected.
Now, the science part: these vacuum insulated transfer systems are all about pushing back against the main ways heat sneaks in—conduction, convection, and radiation. Inside, you’ve got a stainless-steel pipe moving LNG, liquid nitrogen, oxygen, hydrogen, or whatever cryogenic fluid you need. The outer jacket forms a vacuum chamber; pull the air out, and you cut gas conduction, pretty much stop convection cold, and, with multilayer insulation (MLI), keep radiative heat to a minimum. Altogether, you get the sharp drop in heat leak you need for tough, industrial gas work.
But if your vacuum deteriorates, that delicate balance falls apart. As the gas pressure creeps up, conduction gets worse, and you lose insulation performance fast. You might spot it first as some odd condensation or frost outside. If it gets worse, expect more boil-off, possible two-phase flow, less transfer capacity, and a process that just won’t stay stable. So here’s the deal: don’t just check if your Vacuum Insulated Pipe moves liquid—check its thermal health, too.

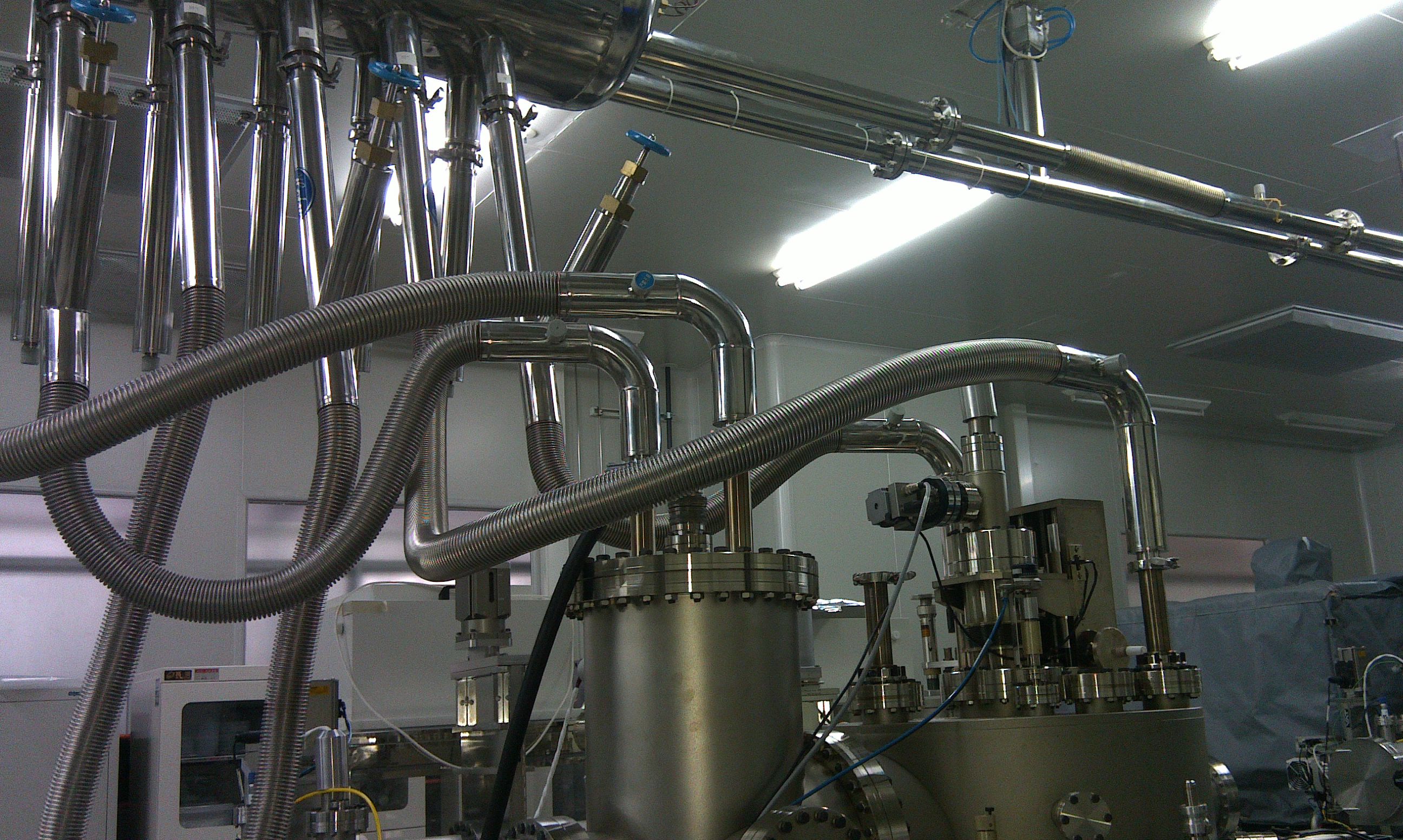

Cryogenic hoses are the unsung heroes of low-temp fluid transfer. Unlike the usual industrial hose, these handle -196°C for liquid nitrogen, oxygen, and argon, and also cope with tricky LNG and hydrogen jobs. Our Vacuum Insulated Flexible Hose is built to minimize heat from the outside seeping in. Heat's always looking for a way—through conduction, convection, or radiation—and robust vacuum insulation technology blocks those paths, boosting efficiency.
If you’re picking a cryogenic hose, get the specs right: working pressure, flow rate, how much it bends, what kind of connections you need, vacuum performance, and where you’ll install it. When you make the right choice, you lose less product, keep things steadier, and the equipment lasts way longer.
Phase Separator
Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Vacuum Monitoring for Cryogenic Pipe Systems
2. Dynamic Vacuum Pump System for Long-Term Stability
3. Leak Detection: Finding the Cause, Not Just the Symptom
4. Valves and Phase Control Are Part of Vacuum Maintenance
● Vacuum Monitoring for Cryogenic Pipe Systems
At HL Cryogenics, you can’t start monitoring vacuum without knowing whether you’re working with a static or dynamic system. In static setups, every cryogenic pipe or connected vacuum section gets pumped down during build or startup, then sealed off. You’ve got vacuum ports so you can check the pressure in the annular space and fix it if it starts drifting. Honestly, keeping that vacuum stable is all about solid welds, good seals, materials that don’t give off too much gas, smart joint design, and making sure every component that touches the vacuum is in good shape.
Don’t just trust a single vacuum gauge reading, though—not without the bigger picture. Warm pipes and cold, cryogenically cooled systems behave differently. As things cool, leftover gases can either condense or stick to cold spots, so the numbers shift. That’s why you can’t just look at one reading and call it good or bad. Instead, check how the vacuum has trended over time, and pair that with the temperature outside the jacket, operating pressure, how much cryogen you’re burning through, if and where you see frosting, and what’s happened with the system in the past. Tracking these things together gives you much more insight—they help you spot trouble before it turns into downtime, instead of reacting to a single measurement that doesn’t tell the whole story.
● Dynamic Vacuum Pump System for Long-Term Stability
When you need nonstop thermal reliability, our Dynamic Vacuum Pump System is the smart choice. It doesn’t just rely on the vacuum sealed in when the equipment leaves the factory. Instead, it connects directly to your vacuum jacket network and actively pulls out any residual gases that slip in or build up as time goes on. This really matters for big, complex cryogenic transfer setups—think lots of spools, field joints, valves, flexible hoses, or multiple vacuum connections.
You see the benefits even more in humid environments, high-demand systems, or anywhere you want the setup to run for years with little downtime. Even tiny leaks, slow gas seepage, or the slightest material outgassing can erode a static vacuum over time. With a Dynamic Vacuum Pump System, you get a solid engineering solution that deals with these problems head-on, keeping your vacuum right where you need it. For EPC contractors, there’s another plus: maintenance gets a whole lot easier. Instead of tracking down and servicing every single section one by one, you handle vacuum recovery through one engineered network.
When you notice the vacuum starting to slip, your next step is to figure out why. Is it a leak? Outgassing? Maybe a damaged seal or some other mechanical issue? This is where helium mass-spectrometer leak detection comes in handy. Helium’s small atomic size, low background presence, and sensitive detection make it perfect for tracking down leaks. During testing, you expose possible trouble spots—welds, joints, ports, seals—to helium and watch to see if any sneaks into the evacuated space.
Don’t forget the basics, though—visual checks still matter. If you see frost building up around a specific spot, that’s a red flag for a vacuum issue or thermal bridge. Mechanical hits to a Vacuum Insulated Flexible Hose can mess with both the pressure boundary and the vacuum jacket. Pay special attention to bayonet connections, flanges, flexible hoses, ports, and transition joints. Always follow proper leak detection procedures to meet cryogenic engineering standards. Don’t just rely on soap bubbles or a quick glance—those shortcuts miss too much.
● Valves and Phase Control Are Part of Vacuum Maintenance
When you look at a Vacuum Insulated Valve, don’t treat it like any old process valve stuck between insulated pipes. It’s really part of the insulation system itself. The extended body, vacuum jacket, stem setup, seals, and connections are all there to keep conductive heat transfer down while making sure the valve delivers a solid shutoff. And these valves aren’t all the same—some handle low-pressure liquid nitrogen, while others run in LNG or industrial gas setups with much higher operating pressures.
Now, let’s talk about Vacuum Insulated Phase Separators. These are essential for gas-liquid separation and steady liquid supply to downstream equipment. Whenever you transfer cryogenic liquids, a bit of flash gas forms from pressure drops and heat sneaking in. If you get rid of that gas before it hits sensitive spots, liquid delivery improves, and your process works more smoothly. Honestly, everything—the separator, the valve, mini tanks, cryogenic piping, and hoses—needs to function together as one integrated system, both thermally and hydraulically.
For cryogenic transfer gear, we rely heavily on austenitic stainless steels like 304L and 316L. They’re tough, flexible at extremely low temperatures, and pretty resistant to corrosion. Welding’s no headache either. If you need flexible parts, though, material choice gets tricky—especially when you factor in pressure, temperature fluctuations, cyclic movements, or the way bellows are constructed. It’s even tougher when the job involves liquid hydrogen near -253°C. Here, thermal contraction and leakage prevention demand careful engineering.
HL Cryogenics doesn’t just talk about quality; we back it up with ASME, CE, and ISO certifications. That means we’re set up to manufacture gear for all sorts of national and international projects. Depending on where it’s going and what it needs to do, we follow ASME, EN, ISO, PED, and any project-specific guidelines. This matters a lot for multinational EPC jobs, where pressure ratings, material tracking, welding rules, inspections, documentation, and acceptance standards all need to be locked down from day one.
● Vacuum Jacketed Piping Across Global Cryogenic Applications
Take a typical LN₂ distribution system at a semiconductor plant in Southeast Asia. You’ll find long runs of Vacuum Insulated Pipe, stretches of Vacuum Insulated Flexible Hose, isolation valves, and phase-control gear along the line. The humidity’s no joke—so even the smallest gap or nick in the insulation shows up fast as condensation or frost. But going in and swapping out entire sections just because they look bad from the outside? That’s a waste. We start by checking vacuum readings and looking over recent operating data. Next, we pinpoint the section that’s having trouble, isolate it, and break out helium leak detection gear to check every joint and vacuum connection. If long-term vacuum quality really matters, it’s smart to bring in a Dynamic Vacuum Pump System. That way, you keep insulation tight and efficient for years, not just months.
You see the same maintenance mindset everywhere—LNG setups in Southeast Asia, chip plants in East Asia, gas facilities in Europe, and hydrogen projects in the Middle East. The fluid and pressures may change, but there’s no getting around it: solid vacuum insulation is the heart of thermal efficiency. If the cryogenic transfer system is engineered right, you cut heat coming in, keep boil-off to a minimum, deliver liquids reliably, and reduce the chance of maintenance headaches down the line.
At HL Cryogenics, we handle end-to-end solution engineering—Vacuum Insulated Pipe, Vacuum Insulated Flexible Hose, Valves, Phase Separators, Mini Tanks, and Dynamic Vacuum Pump Systems—it’s all on the table. Thinking about a new build, a vacuum system upgrade, or need a fresh look at your maintenance plan? Reach out and tell us about your operating conditions and what you need from your cryogenic system. We’ll help you get it right.
