When it comes to LNG transfer systems, the choice between Vacuum Insulated Flexible Hose and Vacuum Insulated Pipe comes down to how you plan to install them, what conditions they'll face, and how much flexibility you need.
Vacuum Insulated Pipe gives you top-tier mechanical stability and works best for permanent LNG infrastructure, especially if you’ve got long transfer lines to deal with. On the other hand, Vacuum Insulated Flexible Hose is the go-to for situations where you need movement—like loading and unloading—or when your connection points are subject to vibration.
Both systems use advanced vacuum insulation to cut down heat leakage and keep LNG evaporation losses to a minimum. At HL Cryogenics, we custom-engineer both options to fit your project, drawing on decades of cryogenic experience while sticking to international standards.
The main reason for insulation in LNG—or any cryogenic system—is pretty straightforward: you want to keep outside heat from getting into your cryogenic fluid. A solid cryogenic transfer system defends against three kinds of unwanted heat: conduction, convection, and radiation. Vacuum Insulated Pipe and Vacuum Insulated Flexible Hose handle this challenge by building a high-vacuum space between the inner pipe carrying LNG and the outer jacket.

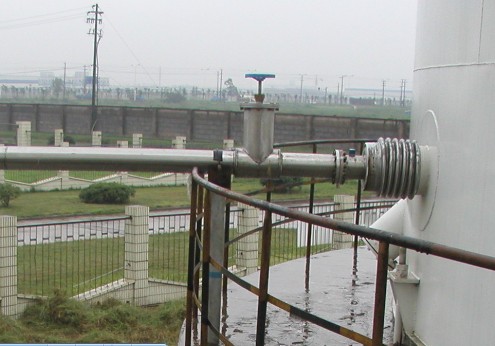

Vacuum Insulated Pipe is designed for fixed setups where you can plan the pipeline path and need long-term reliability. It’s built with a stainless-steel inner pipe, vacuum jacket, multilayer insulation (MLI), vacuum monitoring, and connection components. Compared to regular insulated piping, our vacuum-insulated cryogenic pipe slashes heat loss and boosts efficiency.

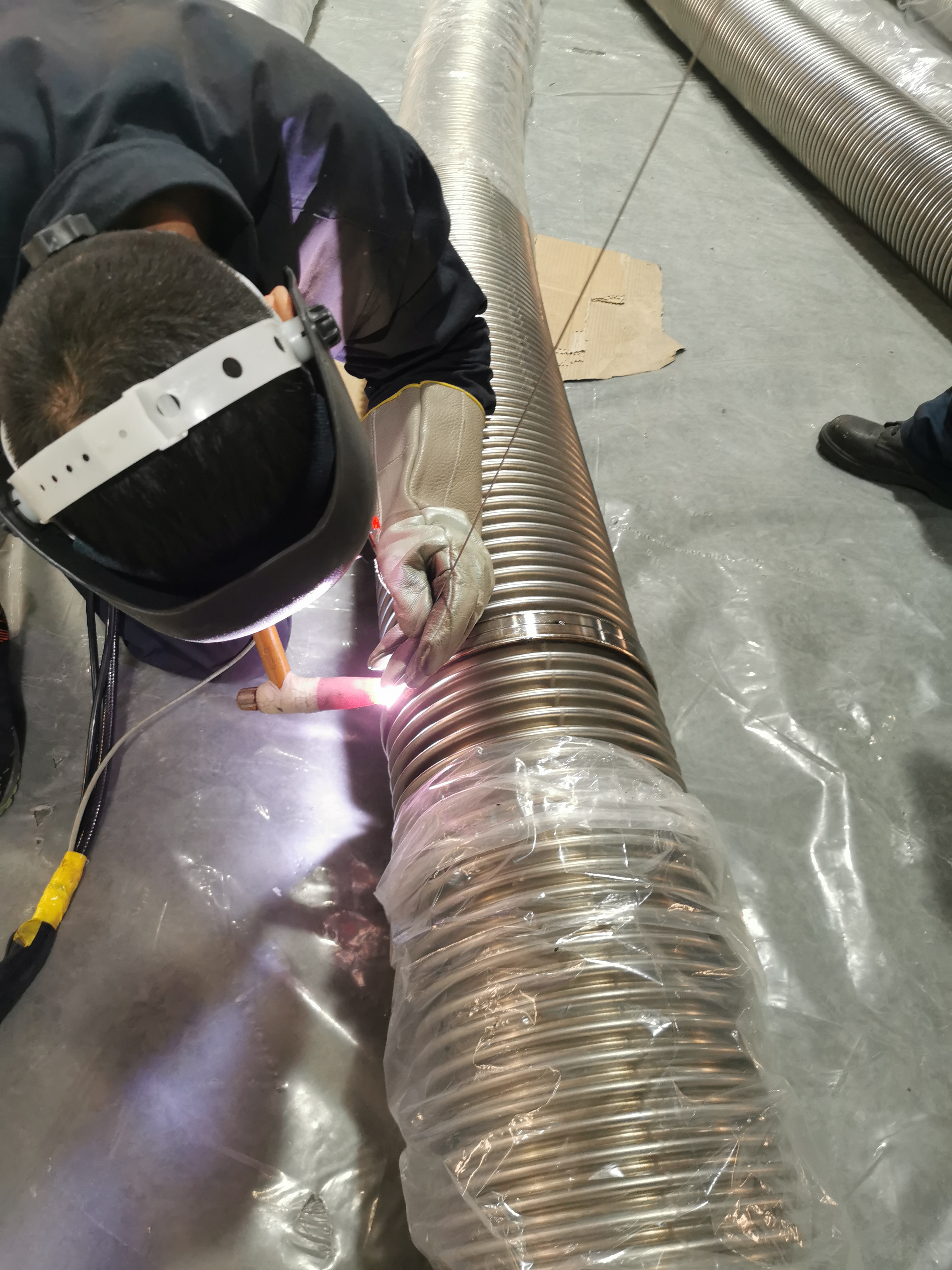

Vacuum Insulated Flexible Hose, meanwhile, fits situations where you need flexibility—literally. If your system requires frequent movement, quick connections, or needs to handle vibration, flexible hose is the answer. Unlike rigid pipes, these hoses are easy to install between LNG tanks, trailers, dispensers, or industrial equipment. You’ll see them in LNG bunkering, gas filling stations, labs, and a range of industrial gas applications.
Table of Contents
1. Vacuum Insulation Performance and Heat Leak Control
2. System Integration: Vacuum Pumping and Safety Components
3. Choosing Between Flexible Hose and Rigid VI Pipe
4. Standards, Manufacturing Capability, and Global Applications
Vacuum Insulation Performance and Heat Leak Control
Heat leak reduction stands at the heart of both systems’ performance. In cryogenic setups, even a tiny bit of heat sneaking in turns liquid LNG—or any cryogenic fluid—straight into vapor. Our approach relies on vacuum insulation: by pulling gas molecules out of the space between layers, we slash convection, and with MLI layers stacked inside, we cut down thermal radiation too.
Maintaining a strong vacuum isn’t just a technical detail; it’s essential. If vacuum stability slips, you get more evaporation losses, lower efficiency, and rising operating costs. That’s why our designs focus on secure vacuum retention, first-rate materials, and careful, optimized manufacturing.
At HL Cryogenics, we build both Vacuum Insulated Pipe and Flexible Hose from stainless steel. We match material grades to temperature, pressure, and chemical demands. These systems aren’t one-size-fits-all—they’re tailored for everything from LNG to liquid nitrogen, liquid oxygen, liquid argon, hydrogen, and helium. Whatever the project needs, we’re ready to make it work.
● System Integration: Vacuum Pumping and Safety Components
If you’re running a large cryogenic facility, keeping the vacuum intact year after year is non-negotiable. Our Dynamic Vacuum Pump System takes care of this by actively monitoring and adjusting vacuum levels as needed. Think of it as insurance against the slow but inevitable loss of vacuum—whether from outgassing, tiny leaks, or simple wear and tear over time.
You’ll really see the benefit of this system in places like LNG plants, semiconductor facilities, or any big industrial gas operation where you simply can’t afford downtime. It keeps the vacuum stable, stretches out equipment life, and safeguards the thermal insulation you rely on.
Of course, insulated pipes and hoses aren’t the whole story with cryogenic transfer systems. You need a few specialized pieces, too. Our Vacuum Insulated Valve, for example, does a great job cutting down thermal losses right where you control flow—plus, it gives you solid, dependable regulation. The Vacuum Insulated Phase Separator steps in where you need clean gas-liquid separation and stable pressure, keeping your operation both safe and efficient.
Choosing the right components depends on where you’re working. In Southeast Asian LNG terminals, with their massive storage tanks and fixed loading spots, Vacuum Insulated Pipe almost always wins. It’s tough, requires little upkeep, and handles fixed routes with no fuss.
But at loading stations, bunkering systems, or gear connection points, the game changes. That’s where Vacuum Insulated Flexible Hose comes in—helping operators connect equipment quickly and safely, and making installation a lot less of a headache.
Take one LNG transfer project we tackled. The site had a cramped layout, with storage and process gear close together. The client needed both a fixed pathway and plenty of operational connections. We built a hybrid system: Vacuum Insulated Pipe for the fixed sections, Flexible Hose for the connections. The result? Faster installation, reliable connections, and minimal heat loss from start to finish.
● Standards, Manufacturing Capability, and Global Applications
The flow and pressure of cryogenic liquids within the HL Cryogenic vacuum jacketed pipe system are regulated using specially engineered HL Cryogenic valves. These components are designed to operate reliably under ultra-low temperatures and rapid thermal transitions.
To further enhance system safety and accessibility, each HL Cryogenic valve is housed inside an insulated HL Cryogenic valve box. The valve box protects the valve from moisture ingress, reduces frost buildup, and enables technicians to perform inspections and adjustments without disrupting the thermal balance of surrounding areas.
This compact, modular configuration also aligns well with the strict spatial limitations common in semiconductor packaging plants and cleanroom environments.
● Conclusion
At HL Cryogenics, we manufacture cryogenic equipment according to international engineering requirements. We hold ASME, CE, and ISO certificates, which allow us to manufacture products according to different countries’ standards and project specifications.
Our products are used in global applications, including LNG infrastructure in Southeast Asia, semiconductor manufacturing facilities in East Asia, industrial gas plants in Europe, and hydrogen projects in the Middle East. Each project requires careful consideration of pressure rating, temperature range, material selection, vacuum performance, and applicable cryogenic engineering standards such as ASME, EN, and ISO requirements.
Our cryogenic engineering team supports complete system design, including Vacuum Insulated Pipe, Vacuum Insulated Flexible Hose, Vacuum Insulated Valve, Vacuum Insulated Phase Separator, and Mini Tank solutions. We focus on reliable operation, optimized thermal performance, and long-term system stability.
Whether the requirement is a compact laboratory liquid nitrogen system or a large-scale LNG transfer network, we provide customized cryogenic solutions based on real operating conditions. Contact HL Cryogenics for professional engineering support and a tailored vacuum insulated transfer solution for your project.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
