Choosing the right cryogenic transfer hose goes way beyond just looking at size or pressure rating. You have to understand what you’ll be moving—whether it’s LNG, liquid nitrogen, liquid oxygen, or hydrogen—and think carefully about working pressure, temperature, heat leak, and how the hose fits with your overall system. Vacuum insulation performance matters a lot, especially for safety and reliability over years of service.
Honestly, we always recommend picking a Vacuum Insulated Flexible Hose that’s built for your specific application. That way, you know it checks every box when it comes to cryogenic standards, system integration, and maintenance requirements. Every hose we design at HL Cryogenics reflects that thinking. We measure thermal performance, make sure materials won’t break down, check vacuum stability, and factor in how easy it’ll be to look after. Plus, we back all our products with ASME, CE, and ISO certifications, so customers get equipment that meets tough international standards.
Cryogenic hoses aren’t like ordinary industrial hoses. These are the lifelines for any system moving really cold fluids—like liquid nitrogen at -196°C. They have to deliver consistent, stable performance even in extreme conditions, whether you’re handling argon, oxygen, LNG, or hydrogen.
Our Vacuum Insulated Flexible Hose does what it’s supposed to—it keeps heat from sneaking in. That’s a big deal because heat always tries to get in through conduction, convection, or radiation. We use advanced vacuum insulation so you don’t lose product and so your system runs more efficiently.
When you’re picking a cryogenic hose, don’t just focus on specs. Look at working pressure, flow rate, how much you need the hose to bend, the type of connections, vacuum performance, and whether it’ll fit your installation environment. Getting it right gives you smoother processes, less product loss, and equipment that lasts longer.
Phase Separator
Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Vacuum Insulation Technology and Heat Leak Reduction
2. Material Selection and Cryogenic Engineering Standards
3. Selecting Hoses for LNG, LN₂, LOX and Hydrogen
4. System Integration: Beyond the Hose
● Vacuum Insulation Technology and Heat Leak Reduction

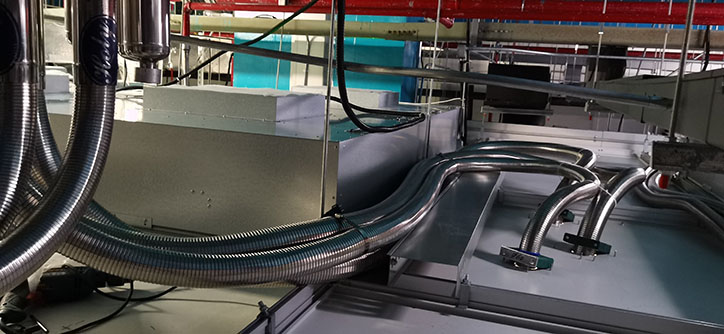

A Vacuum Insulated Flexible Hose stands out because it keeps heat out so well. The high-performance vacuum jacket, paired with layers of insulation and the vacuum space inside, slashes radiation and convection losses.
We designed our vacuum insulation technology for situations where the quality of your fluid can’t take a hit. Think LNG setups, semiconductor plants, or industrial gas systems—here, even a slight uptick in heat leakage means more vapor and lower efficiency.
The trick to keeping everything running smoothly is a stable vacuum. Lose that, and you’ll see heat creep in, leading to rising pressure inside storage or transfer lines. That’s why every detail—from the vacuum design and material choices to leak prevention and how we build the hoses—matters for making the whole cryogenic system dependable.
● Material Selection and Cryogenic Engineering Standards
Picking the right materials matters a lot in cryogenic engineering. Most of the time, you’ll see us using stainless steels like the 304 and 316 series. They’re tough, don’t rust easily, and stand up well when temperatures drop.
When it comes to handling oxygen, we don’t mess around. We stick to strict oxygen cleaning procedures to keep things safe and reliable. With hydrogen, it gets even trickier. Because hydrogen molecules are so tiny, we pay extra attention to material compatibility and making sure there’s zero leakage.
At HL Cryogenics, we stick to international standards like ASME, CE, and ISO. That’s not just for show—it means our products are ready for a range of different markets, and we can meet whatever engineering standards each country throws at us.
● Selecting Hoses for LNG, LN₂, LOX and Hydrogen
When it comes to LNG transfer systems, the top concerns are pretty clear: safety, keeping heat loss to a minimum, and making sure everything runs smoothly—even when flammable gases are in play. In Southeast Asia, LNG terminals depend on cryogenic equipment that holds up under humid, coastal conditions. You need insulation that stays consistent, no matter what the weather throws at you.
Switching gears to semiconductor facilities in East Asia, the stakes are different. Here, systems moving liquid nitrogen have to keep heat leak as close to zero as possible—otherwise, your production quality takes a hit. That’s where our Vacuum Insulated Flexible Hose steps in. It keeps temperatures stable and handles frequent filling and transfers without missing a beat.
Now, for LOX (liquid oxygen), the big thing is compatibility with oxygen. Every single part—from connections to valves—must be built for safe oxygen handling. And out in the Middle East, hydrogen projects demand high-performance vacuum insulation and tight leakage control. These aren’t just nice-to-haves; they’re essentials for building tomorrow’s clean energy infrastructure.
● System Integration: Beyond the Hose
A cryogenic transfer system is more than just a hose. Depending on what you need, we pull in parts like Vacuum Insulated Pipe, Vacuum Insulated Valves, Phase Separators, and Mini Tanks to build a full, reliable system.
Our Vacuum Insulated Valves cut down thermal losses and keep your flow steady. Standard valves lose cold around the body, but our vacuum insulated designs hold the cold where it counts, which bumps up your system’s efficiency.
The Vacuum Insulated Phase Separator has a big job—it keeps the liquid and gas phases under control. If your operation handles high flow, you don’t want gas build-up causing problems. The phase separator removes unwanted gas and delivers a steady stream of liquid, which means more reliable processes for industrial gas setups and advanced manufacturing lines.
For those running larger cryogenic systems, our Dynamic Vacuum Pump System works in the background to keep vacuum conditions strong. It monitors and adjusts the vacuum inside the insulation, dealing with leaks or outgassing that build up over time. This way, your system performs better, lasts longer, and you can stretch out your service intervals.
Choosing a cryogenic hose isn’t just about picking a product off the shelf—it’s an engineering decision that plays into safety, efficiency, and your bottom line. The right setup means knowing your whole system: the fluids you’re moving, your pressure and vacuum specs, and even how you plan to grow in the future.
At HL Cryogenics, we don’t do one-size-fits-all. We work with you to design the full package: Vacuum Insulated Pipe, Flexible Hose, Pump Systems, Vacuum Insulated Valves, Phase Separators, and Mini Tanks—customized for whatever you’re handling, from LNG and nitrogen to oxygen or hydrogen. If you want to talk specs or start planning your system, get in touch and let’s make it happen.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
