Cutting down on boil-off gas in cryogenic liquid transfer isn’t just about one thing — it’s about paying attention to every detail along the way. At HL Cryogenics, we don’t leave that to chance. We use high-performance vacuum insulation, smart system design, and tough, reliable components to keep heat out and cryogenics running smoothly. Our solutions include Vacuum Insulated Pipe, Vacuum Insulated Flexible Hose, and some of the best vacuum management systems out there. The goal? To block heat leaks and make cryogenic transfer more efficient. But there’s more to it: choosing the right materials, making sure the vacuum stays stable, and controlling phase changes all matter if you want to keep evaporation low. When you get the system design right, you see the difference—better reliability, less product lost, and lower costs in the long run.
Cryogenic liquids like liquid nitrogen, oxygen, argon, LNG, hydrogen, and helium are all extremely sensitive to heat. Even a small temperature difference between the environment and the liquid is enough to start stealing energy, making the liquid evaporate and forming boil-off gas (BOG). In industrial settings, excess BOG isn’t just wasteful; it means lost product, pressure buildup, extra venting, and a hit to overall efficiency.

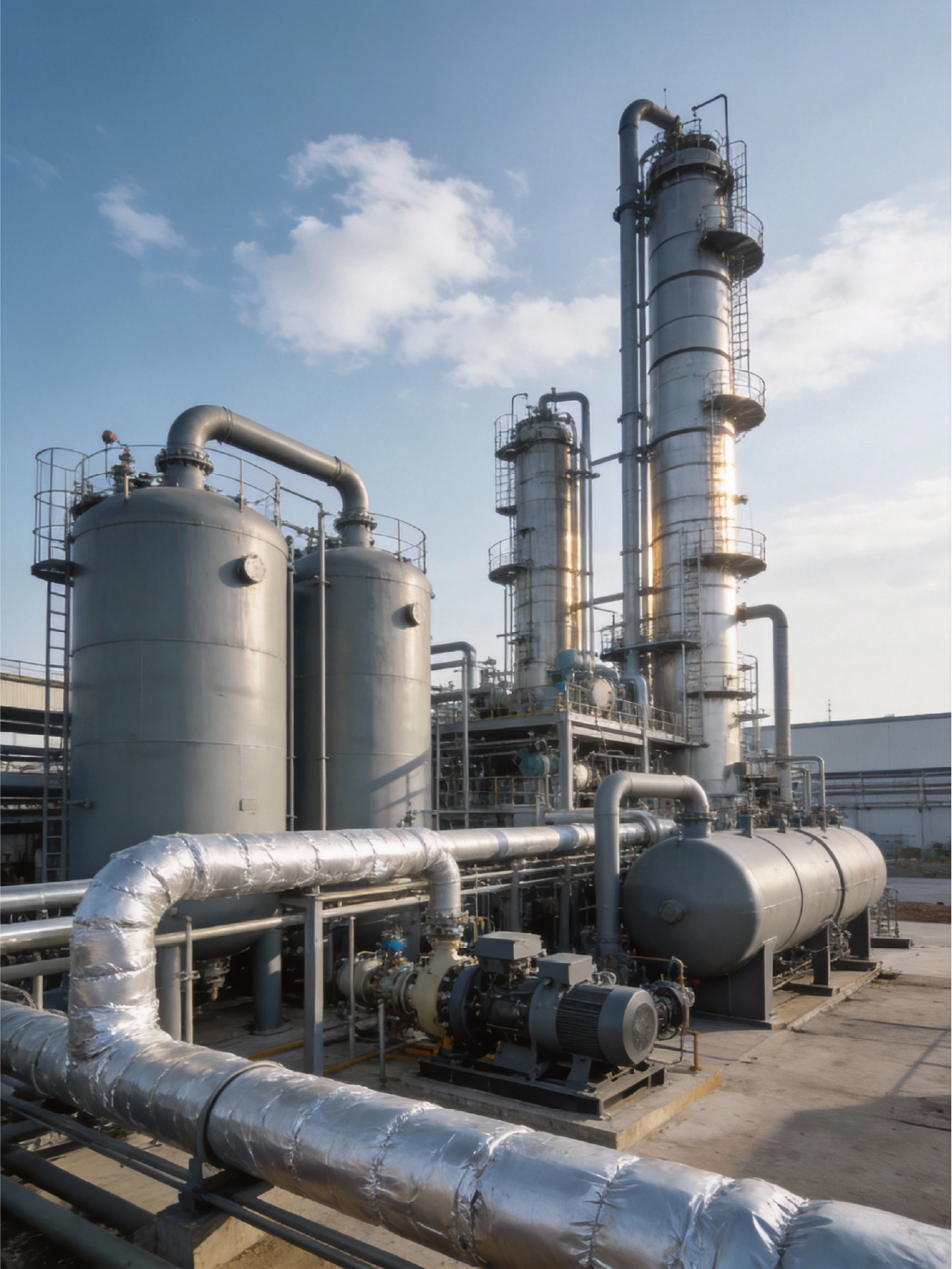

We tackle these headaches head-on at HL Cryogenics. Our Vacuum Insulated Pipe, for example, uses a double-wall setup: there’s an inner pipe for the cryogenic liquid, wrapped inside a vacuum-sealed outer jacket. That vacuum is a game-changer, seriously cutting down on heat transfer through conduction and convection. On top of that, we add multilayer insulation to take care of radiation. You’ll find this technology in all kinds of places: industrial gas plants, LNG stations, semiconductor manufacturing, hydrogen infrastructure, and research labs.
Phase Separator
Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Understanding Heat Transfer in Cryogenic Systems
2. Maintaining Long-Term Vacuum Insulation Performance
3. Optimizing Cryogenic Transfer System Design
4. Supporting Global Cryogenic Applications
● Understanding Heat Transfer in Cryogenic Systems
Heat transfer is what really drives boil-off gas in cryogenic pipes. In a standard setup, heat sneaks in three ways: conduction, convection, and radiation. So, think about conduction — that’s heat slipping through solid bits like pipe supports and connectors. Convection? It’s those gas molecules bouncing around, passing heat from one to another. Radiation, on the other hand, is just surfaces swapping energy because there’s a temperature difference between them.
Vacuum insulation tackles this problem head-on. By sucking out most of the gas between the inner and outer pipes, convection practically disappears. Conduction almost vanishes too, thanks to smarter support designs and materials that don’t let heat through easily. The result? These cryogenic pipes get a massive reduction in heat leak and hold onto their vacuum insulation for ages.
Material choice matters a lot here. Stainless steel is usually the go-to—it's tough, doesn’t rust, and handles super-low temperatures without breaking a sweat. Designers pay close attention to how the pipes expand and contract, welding procedures, and thermal bridges. That way, even with all the temperature swings, the whole system stays reliable.
● Maintaining Long-Term Vacuum Insulation Performance
Vacuum-insulated systems only work well if you keep the vacuum intact. Let’s face it, over time, tiny amounts of gas sneak into the vacuum space—sometimes through permeation, sometimes from materials themselves, or even microscopic leaks. When the vacuum breaks down, heat sneaks in, and you end up losing more product to boil-off.
HL Cryogenics tackles this head-on with their Dynamic Vacuum Pump System, built for serious, long-term vacuum maintenance. It’s always watching vacuum levels, ready to kick into action and clear out gases before they build up in the jacket. With this system, you get consistent insulation performance, not just at the start but for the whole equipment lifecycle.
This technology really shines in big cryogenic setups—think LNG terminals in Southeast Asia, hydrogen projects in the Middle East, and industrial gas plants scattered across Europe. Operators rely on it to keep vacuum stable, cut down on product losses, and boost reliability in their cryogenic transfer systems. It’s about peace of mind and better results, every day.
● Optimizing Cryogenic Transfer System Design
Cutting down on boil-off gas takes more than just insulated pipes. You need the whole cryogenic transfer system dialed in—from valves and phase control to connection points and how your team operates the equipment.
Our Vacuum Insulated Valve solutions tackle heat at those critical control spots. Standard valves often let in more heat than you'd think, thanks to their complicated design and metal parts bridging warm and cold sections. We wrap the valve body with vacuum insulation and use an extended stem to keep heat out, all while ensuring the valve stays safe and reliable.
If your operation depends on steady liquid delivery, our Vacuum Insulated Phase Separator keeps everything on track. Pressure swings and heat sneaking in during cryogenic transfer can turn some of your liquid into gas, but the phase separator splits the two, so your downstream equipment gets a steady supply of cryogenic liquid—no surprises.
Take one industrial gas company we worked with: They needed a reliable liquid nitrogen transfer system to connect storage and production. Their big challenge was making sure the liquid nitrogen kept flowing smoothly, without losing a bunch of it to evaporation from constant use.
We put together a custom setup with Vacuum Insulated Pipe, Valve, and Phase Separator tech—all integrated and optimized for maximum insulation. The result? Less heat leaking in, steadier cryogenic fluid transfer, fewer lost product headaches, and better efficiency across their operations.
● Supporting Global Cryogenic Applications
Our cryogenic solutions power a wide spectrum of industries—everything from industrial gas and LNG infrastructure to semiconductors, hydrogen energy, aerospace, food processing, and medical technology. Take East Asia’s semiconductor facilities, for instance. They rely on highly reliable liquid nitrogen systems to keep their operations running around the clock. When it comes to hydrogen, safe and efficient liquid hydrogen transport needs advanced cryogenic engineering, and that’s exactly what we deliver.
HL Cryogenics doesn’t just stop at tanks and pipes. We offer Vacuum Insulated Flexible Hose options for jobs where you need flexibility, vibration absorption, or tricky routing. Honestly, these hoses leave conventional designs behind. The vacuum insulation improves thermal performance and cuts evaporation while transferring cryogenic liquids.
If you’re dealing with smaller volumes, our Mini Tank solutions have you covered. They’re compact, keep cryogenic liquids cold with solid insulation, and are perfect for labs, medical facilities, or any industrial user needing efficient liquid management.
Quality and compliance aren’t just buzzwords here—they’re baked into everything we do. HL Cryogenics holds ASME, CE, and ISO certificates, so our equipment meets international standards and serves customers in all corners of the globe. Every unit we build follows tough quality control procedures: material checks, welding inspection, pressure and vacuum testing, plus leak checks.
We stick to industry standards—ASME, EN, you name it—so global EPC contractors and industrial clients can trust our cryogenic equipment to perform reliably.
Reducing boil-off gas takes more than just good insulation. It means tackling the whole engineering cycle, from design and manufacturing to testing and system integration. HL Cryogenics customizes transfer solutions that lower heat leaks, boost efficiency, and offer a steady, long-term operation.
Got a cryogenic transfer system in the works, or want to make your current setup better? Our engineers are ready to jump in with customized Vacuum Insulated Pipe, cryogenic hose, or complete system solutions that fit your needs.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
