When it comes to vacuum insulated piping, nothing beats helium mass spectrometer leak testing. This method is sensitive enough to spot even the tiniest leaks—down to 5×10⁻¹³ mbar·L/s. We don’t stop there, though. We back this up with static pressure rise testing, so we can see exactly how quickly a vacuum degrades over time. That way, we can spot leaks and check the whole system’s integrity in one go. Still, the simplest check often comes first: just look for icing on the outer jacket. Every operator needs to know that a patch of frost could be an early warning sign. And for pressurized systems, ultrasonic leak detection comes in handy. It’ll pick up leaks from as far as 50 feet away.
At HL Cryogenics, we use all these methods, sticking closely to ASME, CE, and ISO standards. Whether it's a Vacuum Insulated Pipe, a Vacuum Insulated Flexible Hose, or a Mini Tank, every product leaves our facility meeting strict leak-tightness requirements, ready for service anywhere in the world.
Cryogenic fluid transfer doesn’t forgive mistakes. Think about it: you’re running liquid nitrogen at -196°C or LNG at -162°C through a pipe when the air outside is room temperature. The temperature gap is massive—even more than 250°C. If so much as a pinhole opens in the vacuum layer, air slips in. Suddenly, those air molecules turn into tiny heat bridges, wrecking the insulation. Heat leaks spike, product boils off faster, and that gets expensive—especially in LNG terminals in Southeast Asia, where just one failed spool can waste thousands of dollars of product every day.
But the risks run deeper than money. The European Industrial Gases Association has recorded cases where internal leaks in vacuum-insulated tanks led to disaster. Picture this: a fatigue crack forms in a weld, cryogenic liquid seeps into the vacuum space, and the outer jacket gets so cold it turns brittle. When it finally breaks, pieces of steel shoot out with deadly force. The chain of events is always the same and always dangerous. Spotting these problems early isn’t just a nice-to-have—it’s absolutely essential for safety.
Table of Contents
1. Method 1&2: Visual Inspection and Icing Detection
2. Method 3: Helium Mass Spectrometer Leak Testing
3. Method 4: Ultrasonic Leak Detection
4. The Engineering Challenge: Maintaining Vacuum Integrity
Method 1&2: Visual Inspection and Icing Detection
You don’t need fancy equipment for the most basic and reliable detection method—just skilled people who know what to look for. When a Vacuum Insulated Pipe or Mini Tank loses its insulating vacuum, the area around the leak gets cold fast. Cold enough that moisture from the air settles, freezes, and creates obvious ice patches on the outer jacket. That stands out, especially next to the rest of the pipe at room temperature.
We always show our customers’ operators how to do these visual checks routinely. They focus on the usual suspects: welds, flanges, valves, and connections. If anyone spots frost or ice on the outside of the jacket—without any liquid leak in sight—it’s an immediate red flag. That means stop, sound the alarm, and start a full diagnostic check. This straightforward approach has stopped plenty of incidents before they escalate. It’s especially common in European industrial gas work and East Asian semiconductor plants, where having a constant LN₂ supply is non-negotiable.
Static pressure rise testing tells you if the vacuum inside a cryogenic system is holding up, but it doesn’t show you exactly where a leak is. The process is simple: seal off the vacuum annulus, hook up a calibrated vacuum gauge, and watch how the pressure changes over time.
With Vacuum Insulated Valves or Phase Separators, we usually run this test over 24 hours, starting from a pressure below 1×10⁻³ Pa. If pressure climbs past the set limit—which ISO 20486 or ASTM E1603 lays out—that’s proof there's a leak or lots of outgassing from something inside. This test is sensitive—down to 1×10⁻¹² Pa·m³/s—so it’s up to the challenge, even for hydrogen projects in the Middle East with their especially strict leak standards.
Method 3: Helium Mass Spectrometer Leak Testing
Helium mass spectrometer leak testing stands out as the gold standard for finding and measuring leaks in vacuum-insulated systems. We rely on helium for a simple reason: it’s the smallest inert gas molecule. It sneaks through tiny leaks other gases can’t reach, yet it never reacts with equipment or corrupts the cryogenic fluid.
Here’s how the process actually works. We start by pulling a vacuum in the annulus, keeping the mass spectrometer plugged in at the vacuum port. Then we move in with short bursts of helium, spraying it along every suspect spot—welds, flanges, joints, and connection points on the Vacuum Insulated Pipe, Flexible Hose, and Valve assemblies. If even the tiniest leak is there, helium finds it. The gas slips through to the vacuum space, the spectrometer sniffs it out, and instantly signals an alarm.
Internal leaks call for a different tactic. Instead of spraying, we load helium into the inner pipe, pressurizing it. If any escapes through an unseen pinhole into the vacuum annulus, the detector picks up the trace on the spot. By switching between this “spray” method and “pressurization” testing, we leave no path unchecked—inside or out.
We always stick to the strict standards of ASME Standard V, Article 10, and Appendix IV and V. This approach lets us spot leaks down to 5×10⁻¹³ mbar·L/s—a level few other methods can match.
Method 4: Ultrasonic Leak Detection
Ultrasonic detection becomes a viable tool to accompany helium testing in the rapid screening of cryogenic pressured systems. The escaping gas in a pressurized system produces ultrasonic acoustic emissions due to turbulent flow. Thus, using a portable ultrasonic detector, technicians can detect leaks in pipelines and even in complicated assemblies such as Vacuum Insulated Flexible Hose and cryogenic hoses without disturbing the operations on the system.
This technique becomes especially useful when detecting leaks in installations that require constant operation, such as those associated with LNG facilities or industrial gas plants. Up to 50 feet distant from the point of the leakage technicians can detect the location of the leak in the installation, making it a fast, but less sensitive test than helium mass spectrometry.
However, leak detection is not the end of the story – preventing any leaks is the goal of engineering. HL Cryogenics' Vacuum Insulated Pipe and Mini Tanks designs include many precautions aimed at protecting vacuum degradation.
The key feature of HL Cryogenics' vacuum systems is the Dynamic Vacuum Pump System, which guarantees vacuum integrity maintenance during all periods of equipment operation. In contrast to traditional vacuum systems which suffer from the gradual vacuum deterioration due to internal material's outgassing, our system continuously removes residual trace gases from the annulus, preserving vacuum insulation efficiency lower than 1×10⁻³ Pa. The dynamic maintenance increases equipment lifetime.

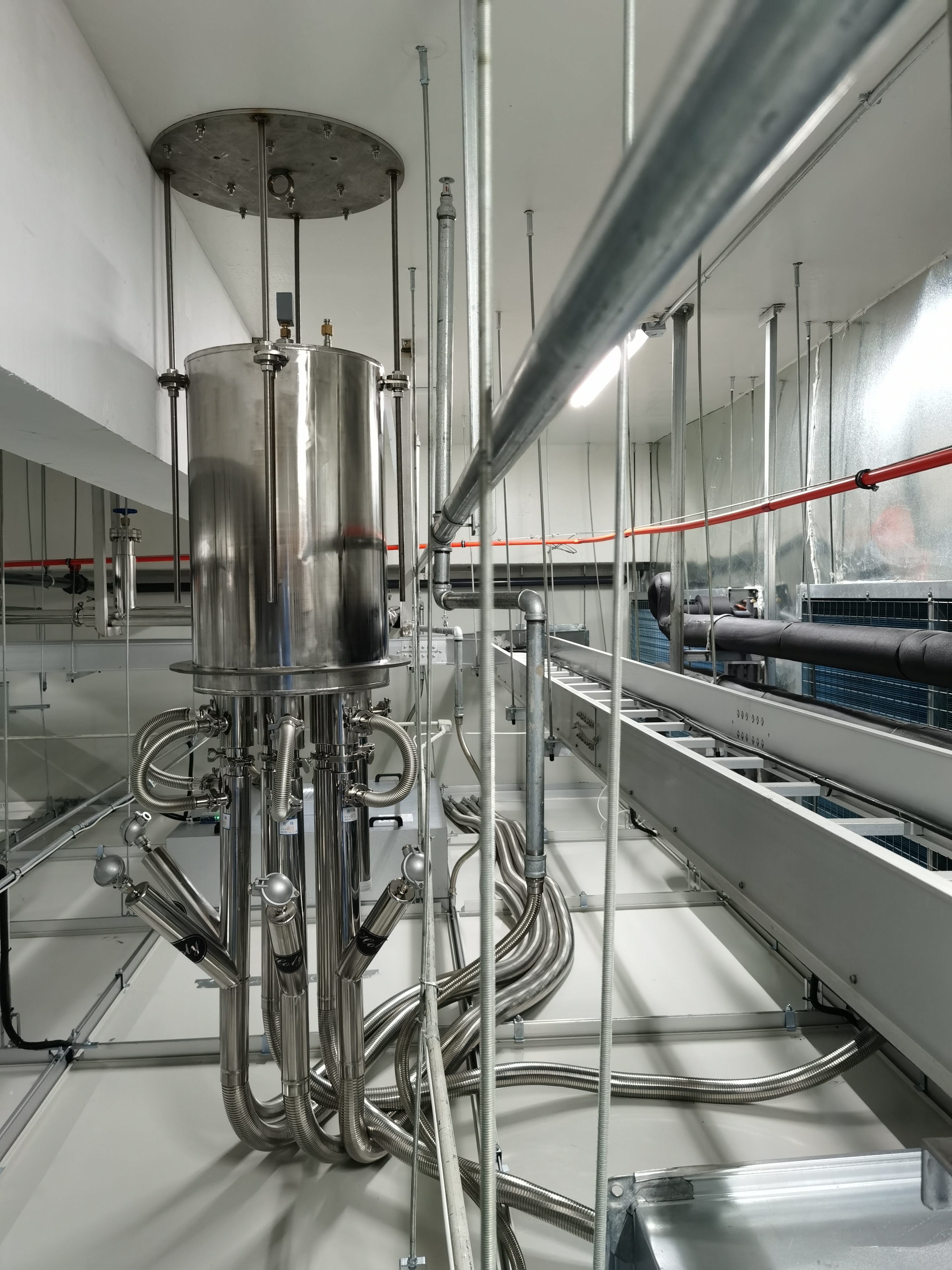

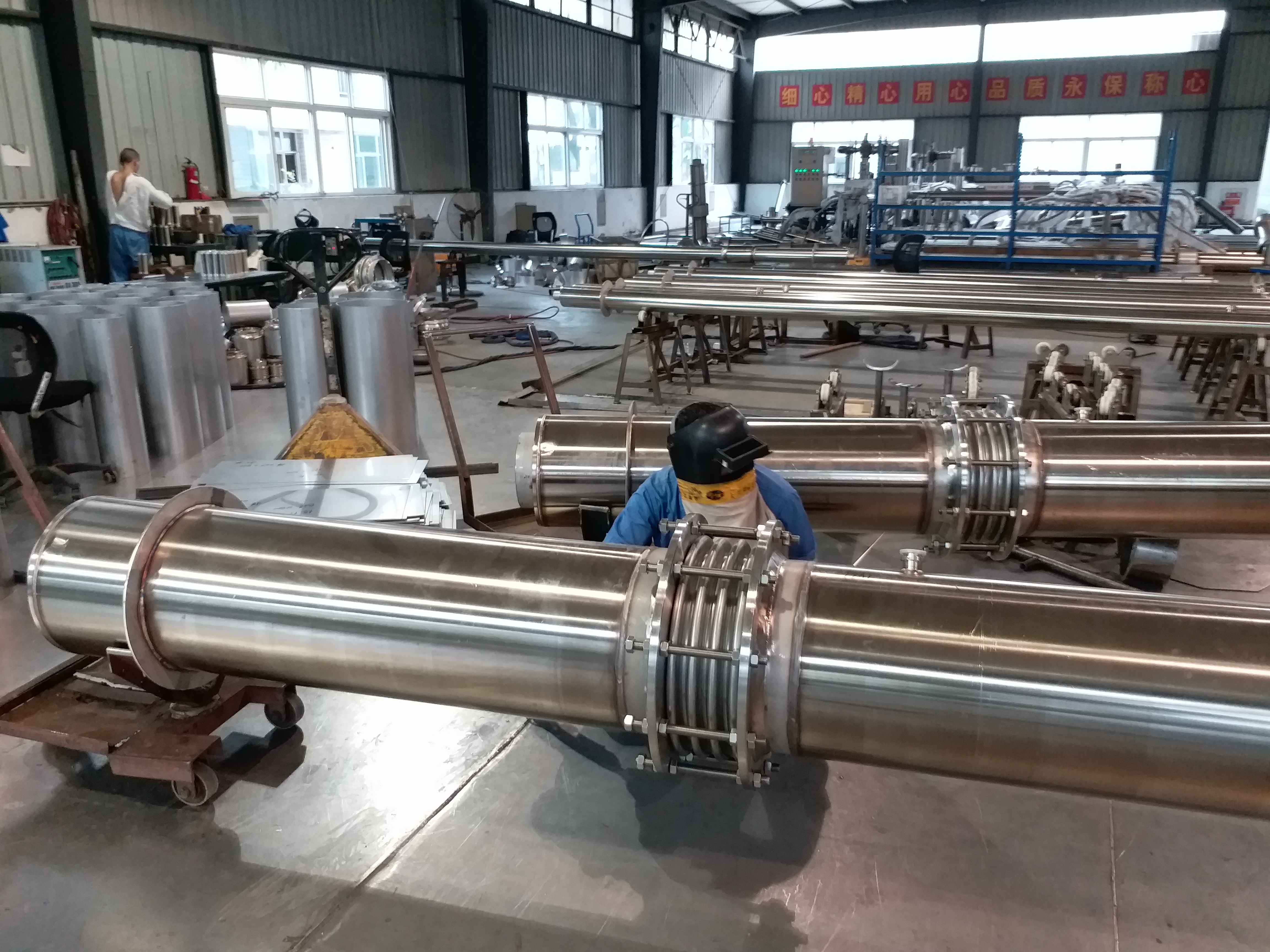

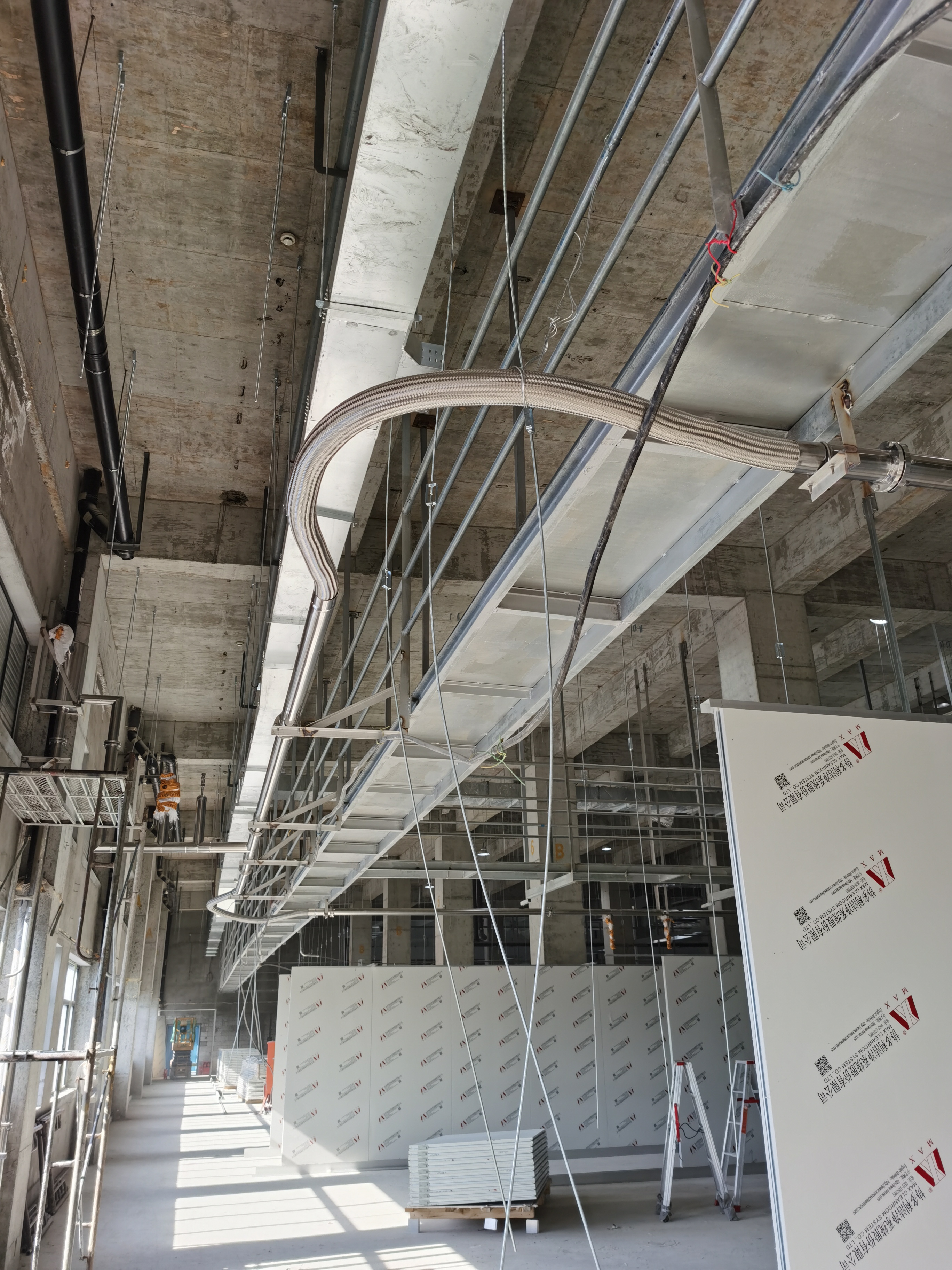

Proper materials selection is essential too. We use only austenitic stainless steels (304L and 316L), which guarantee toughness and corrosion resistance at the cryogenic temperatures of -269°C. All our welds are made in accordance with ASME Section IX requirements and each one of them is checked via radiographic or dye-penetrant examination before vacuum testing. Our products are certified by ASME, CE and ISO, which gives an ability to produce products according to any country's standard – whether it's PED compliance for European markets, ASME B31.3 for American LNG terminals, or GB/T 18442 for Chinese industrial gases.
Conslusion
Take a recent project in an LNG regasification terminal in Southeast Asia. There were over 200 meters of Vacuum Insulated Pipe, several Vacuum Insulated Valve assemblies, and several Vacuum Insulated Flexible Hose connections needed to be installed for the ship-to-shore transfer. The first step of our leak detection methodology was helium mass spectrometer testing of all welds and joints in our workshop, before the equipment was delivered to the site.
Second step was the additional on-site testing using the helium mass spectrometer test and ultrasonic test. In the course of the latter, the technicians found an unusual acoustic signal from a flange connection, which had been visually checked prior. Helium test revealed a leakage less than 1×10⁻⁸ mbar·L/s, which would degrade the vacuum insulation performance during the few following months of work. After we made repairs to the flange seal and repeated tests, leak tightness was successfully verified. Now, the terminal works continuously for three years, without any vacuum degradation.
So, the leak detection in vacuum insulated pipes is not one single technology, but a complex engineering procedure combining visual inspection, pressure rise test, helium mass spectrometer test and ultrasonic screening.
All of these testing techniques are incorporated into the QA procedure at HL Cryogenics, and thus every Vacuum Insulated Pipe, Vacuum Insulated Flexible Hose, Vacuum Insulated Valve, Vacuum Insulated Phase Separator, and Mini Tank supplied by us meets the highest international standards of quality. From an LNG terminal in Southeast Asia to a semiconductor plant in East Asia, from an industrial gases plant in Europe to a hydrogen plant in the Middle East—whatever project you have, our engineers will have both the expertise and qualifications (ASME, CE, and ISO)—to supply you with leakage-proof and high-quality cryogenic systems.
Get in touch with HL Cryogenics now and let us know what your project needs in terms of leak detection. Our engineering team will develop the required leak testing protocol just for your cryogenic system!
