Choosing the right cryogenic hose connection isn’t just a detail—it keeps your system running efficiently and safely. At HL Cryogenics, we focus on options that actually make a difference: our vacuum bayonet couplings are available in both clamp-type and flange-type connections. You get to pick the setup that fits your installation, the conditions you’re dealing with, and how often maintenance is needed.
These connections matter a lot, especially in Vacuum Insulated Flexible Hose systems that move liquid nitrogen, liquid oxygen, liquid argon, and other cryogenic fluids. Traditional pipe joints just can’t keep up. Vacuum bayonet connections use a smart male-and-female overlap. This stretches out the thermal path and cuts down on unwanted heat sneaking in at the joints. The payoff is real—less liquid loss through evaporation, fewer temperature swings, and better control over two-phase flow during transfer.
Clamp-type connections make assembly and disassembly quick and easy. On the other hand, flange connections give you a more rugged, bolted setup, perfect when you need precise fastening and a clearly defined installation process. But there’s more to it than just picking a style. You’ve got to think about operating pressure, how much the material contracts in cold temperatures, seal compatibility, and the mechanical load the connection will handle.
We pay close attention to all these details when we help you select a connection. That way, our hose assemblies fit seamlessly with your storage tanks, pipelines, and equipment—so you get reliable performance without unnecessary headaches.
Phase Separator

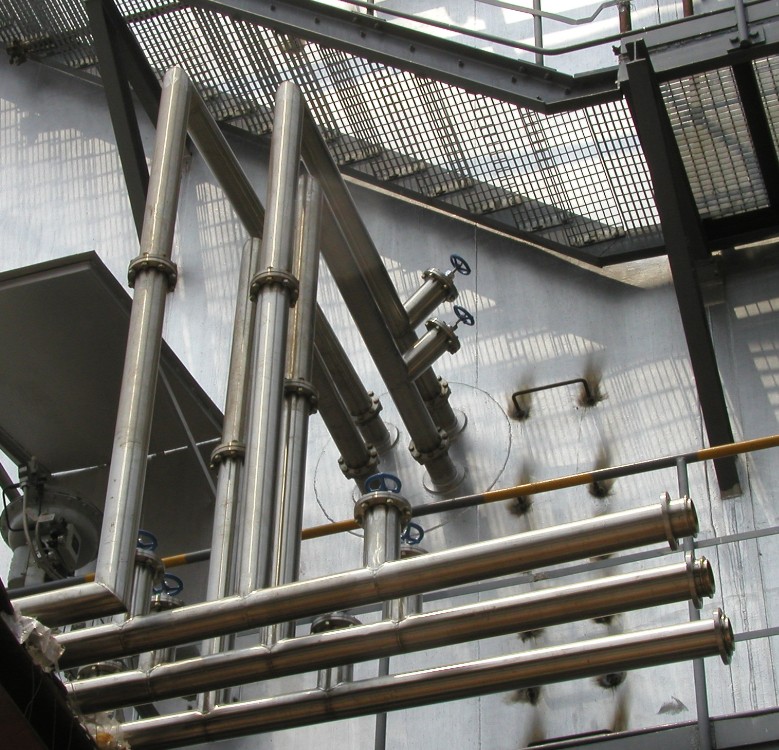

Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Clamp-Type vs. Flange-Type Vacuum Bayonet Couplings: Design and Performance
2. Thermal Efficiency, Vacuum Integrity, and Cryogenic System Integration
3. Industrial Applications and Practical Engineering Considerations
4. Cryogenic Hose Connection Selection, International Standards, and Long-Term Reliability
● Clamp-Type vs. Flange-Type Vacuum Bayonet Couplings: Design and Performance
The main difference between clamp-type and flange-type vacuum bayonet couplings is really about how they fasten together — not how they handle thermal insulation, since both follow the same basic principle there. With clamp-type setups, you get a dedicated clamping mechanism that locks the bayonet components in place. That means you can connect and disconnect them pretty quickly, as long as the equipment is accessible and the procedures aren’t too restrictive. This approach works well for cryogenic transfer systems where you need to swap hoses, service gear, or change your layout from time to time.
Flange-type connections, on the other hand, use bolted flange assemblies for mechanical strength and sealing. We’re more likely to recommend these when the installation calls for specific bolt-tightening steps, solid mechanical support, or needs to match existing flange-based interfaces. Both designs rely on the bayonet geometry to cut down on conductive heat transfer, and the vacuum-insulated shell keeps outside thermal loads in check.
It’s important to realize that the bayonet interface is where you really need to pay attention, since local heat leaks depend on details like the insertion length, material conductivity, contact design, and sealing method. We carefully pick stainless steel grades, seals, and connection sizes based on the operating temperatures, pressure, and what fluids are being transferred. There’s no one-size-fits-all answer — neither clamp nor flange couplings are universally better. The best choice depends entirely on your full engineering requirements.
