A liquid nitrogen piping system must be designed around three priorities: limiting heat input, controlling pressure drop, and maintaining stable liquid delivery at the point of use. At HL Cryogenics, we treat the cryogenic pipe network as part of an integrated cryogenic transfer system rather than as a simple connection between a storage tank and equipment. Liquid nitrogen operates near -196°C, so even modest heat ingress can cause continuous vapor generation, pressure fluctuation, and two-phase flow. The main heat-transfer paths are conduction through metallic supports and joints, thermal radiation across the annular space, and convection if vacuum insulation performance deteriorates. For this reason, a Vacuum Insulated Pipe normally provides much better thermal efficiency than conventional foam-insulated piping in demanding liquid nitrogen system service. Pipe sizing must also consider mass flow, available inlet pressure, total equivalent length, elevation change, fittings, valves, and required terminal pressure. Excessively small piping raises velocity and pressure loss, while oversized piping increases cost, cooldown inventory, and installation space. Our design process therefore balances hydraulic performance with heat leak reduction, ensuring that the selected cryogenic pipe diameter supports the required operating condition rather than simply matching a nominal equipment connection.
Phase Separator

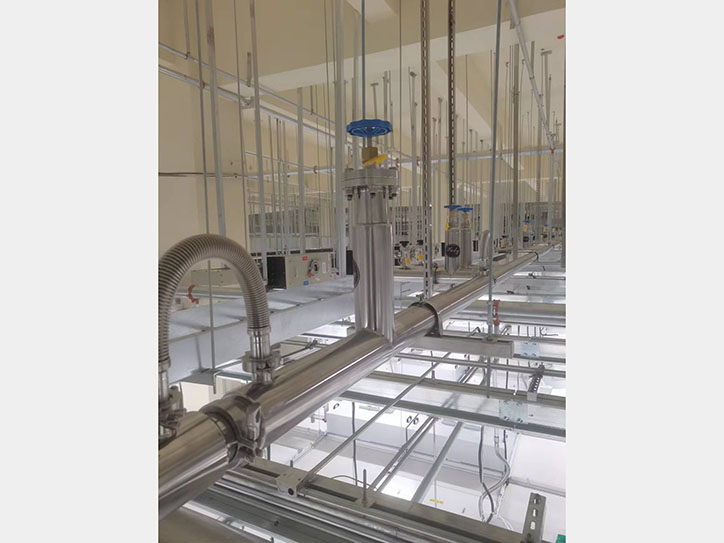

Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Vacuum Insulation, Materials, and Long-Term Thermal Stability
2. Flow Control, Pressure Management, and Phase Stability
3. System Integration for Semiconductor, Industrial Gas, and LNG Facilities
4. Procurement, Standards, and Project-Specific Engineering
● Vacuum Insulation, Materials, and Long-Term Thermal Stability
Vacuum insulation is central to the performance of any liquid nitrogen system because it suppresses convection and significantly reduces conductive and radiative heat transfer when the annular space is properly engineered. We typically use a stainless-steel inner process pipe with a stainless-steel outer jacket, together with multilayer insulation and carefully designed support structures to reduce thermal bridging. Material selection must also account for low-temperature toughness, thermal contraction, weld quality, cleanliness, and compatibility with the process medium. Austenitic stainless steels are widely used because they retain suitable mechanical properties at cryogenic temperature, but material grade and wall thickness still need to follow the design pressure, code basis, and project specification. Vacuum stability over the service life is equally important. A Dynamic Vacuum Pump System can be integrated where long-term vacuum integrity, maintenance access, or operating continuity justifies active vacuum support. This is particularly relevant for extended cryogenic pipe networks, systems with multiple field joints, or installations where minor gas release into the annular space may gradually reduce vacuum insulation performance. At HL Cryogenics, we evaluate vacuum architecture together with piping geometry because thermal efficiency depends not only on insulation thickness, but also on the quality and stability of the vacuum environment around the inner pipe.
● Flow Control, Pressure Management, and Phase Stability
Pressure control becomes increasingly important as a liquid nitrogen line becomes longer or more complex. A well-designed system must ensure that pressure at the delivery point remains high enough to prevent excessive flashing while still staying within the allowable pressure range of downstream equipment. Friction losses through straight pipe, elbows, tees, reducers, flexible sections, and valves should be calculated together rather than assessed separately. A Vacuum Insulated Valve is particularly useful because it provides flow isolation or regulation without introducing the same level of local heat leak associated with conventional uninsulated valve assemblies. Where vibration, movement, thermal contraction, or installation tolerance must be absorbed, a Vacuum Insulated Flexible Hose can be installed between rigid piping sections or at equipment connections. In applications where gaseous nitrogen tends to accumulate in the line, a Vacuum Insulated Phase Separator can improve liquid supply stability by separating vapor from the incoming two-phase stream before the liquid reaches sensitive process equipment. For example, if a semiconductor tool is located at the end of a long distribution branch, unstable delivery may appear as pressure fluctuation and intermittent vapor pockets. A better arrangement may combine optimized line sizing, insulated flow-control components, and phase management near the point of use rather than simply increasing upstream pressure.
●
System Integration for Semiconductor, Industrial Gas, and LNG Facilities

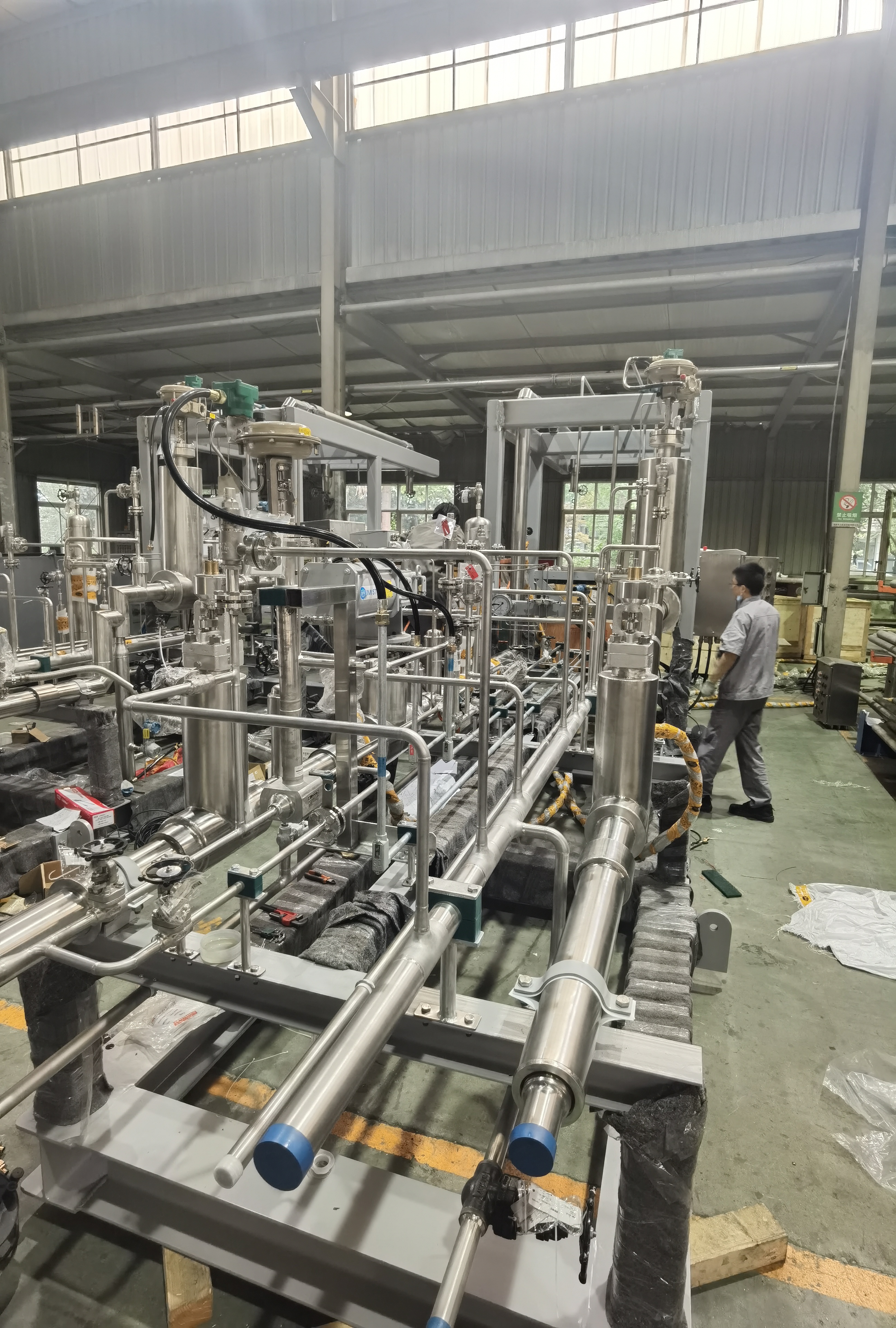

The final piping design must match the operating philosophy of the wider plant. In semiconductor facilities in East Asia, stable liquid nitrogen delivery is often more important than maximum flow capacity, especially where multiple users operate intermittently from one distribution network. In industrial gas plants in Europe, the design may instead prioritize long transfer distances, maintainability, and code compliance. LNG terminals in Southeast Asia apply similar cryogenic engineering principles even though the process fluid, pressure regime, and materials specification may differ. Hydrogen projects in the Middle East introduce another level of material and safety review, particularly where low-temperature service interfaces with high-purity or hazardous process requirements. At HL Cryogenics, we therefore consider the Vacuum Insulated Pipe, Vacuum Insulated Flexible Hose, Vacuum Insulated Valve, Vacuum Insulated Phase Separator, Mini Tank, venting arrangement, supports, field joints, and instrumentation interfaces as one coordinated system. A Mini Tank can be useful where a local buffer volume is required close to the point of consumption, while a cryogenic hose can provide a practical flexible connection for filling, equipment movement, or maintenance access. The correct arrangement depends on process demand, operating pressure, site layout, maintenance philosophy, and the required level of redundancy.
● Procurement, Standards, and Project-Specific Engineering
For procurement teams and EPC contractors, the most important question is not whether a supplier can manufacture a cryogenic pipe, but whether the complete system can be engineered, documented, fabricated, and inspected to the required project standard. At HL Cryogenics, our manufacturing and quality systems support ASME, CE, and ISO certification and compliance capabilities within the applicable certification scope and project requirements. The exact code basis must be confirmed at quotation stage because pressure classification, material certificates, welding procedures, inspection requirements, cleaning standards, documentation packages, and third-party verification may differ significantly between regions and applications. A technically complete inquiry should therefore define the process medium, design and operating pressure, design temperature, flow rate, pipe size, line routing, connection standard, cleanliness requirement, and any special certification requirement. For long liquid nitrogen systems, we also recommend reviewing pressure-drop calculations, expected heat input, vacuum configuration, phase behavior, and field installation constraints before the final layout is frozen. That approach reduces the risk of late design changes and improves both technical and commercial control. If your project involves a liquid nitrogen system, cryogenic transfer system, or specialized Vacuum Insulated Pipe network, our team can review the operating data and help develop a project-specific configuration.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
