Vacuum Insulated Pipes (VIPs) beat traditional cryogenic pipes when it comes to minimizing heat loss. Here’s why: they use vacuum insulation to keep heat out and maintain consistent liquid gas conditions—a must for cryogenic applications. Compared to old-school insulated pipes, VIPs deliver much better thermal efficiency, drive down operating costs, and keep everything running smoothly. When you’re dealing with tough jobs like LNG infrastructure, semiconductor manufacturing, or big industrial gas plants, vacuum insulation isn’t just a good choice—it’s what engineers trust most.
At HL Cryogenics, we don’t just build and sell pipes. We design and manufacture complete cryogenic transfer systems that match both international standards and whatever our clients need.
Let’s be honest—traditional cryogenic pipes rely on insulation materials like polyurethane foam, perlite, or mineral wool. They help, but they can’t completely stop heat conduction or convection. Over long runs, heat sneaks in, leading to more liquid loss, pressure swings, and wasted energy.
Vacuum Insulated Pipes solve this by using a high-vacuum space between the process pipe and the outer jacket. Get most of the air molecules out, and convection practically disappears. Add multilayer insulation (MLI), and even radiation heat transfer drops to almost nothing. The result? Top-notch vacuum insulation.
There’s another challenge with traditional systems—the insulation breaks down over time, soaks up moisture, and struggles with shifting temperatures. That means more leaks and higher costs. Our vacuum-insulated tech isn’t bothered by these problems because the insulation stays stable inside a sealed vacuum jacket, holding its performance year after year.

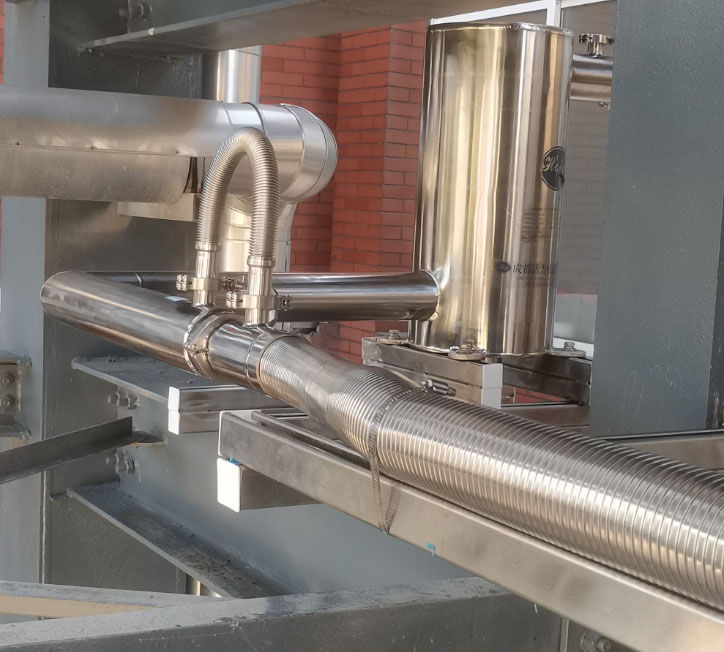

Phase Separator

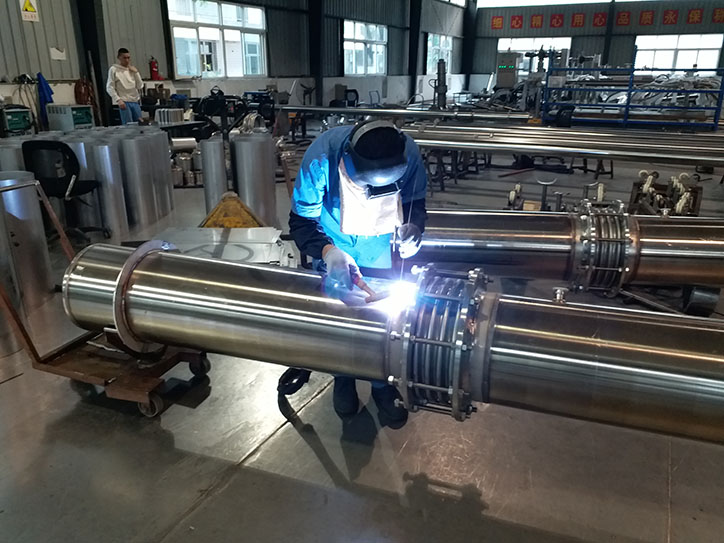

Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Heat Leak Reduction and Thermal Efficiency
2. Complete Cryogenic Transfer System Integration
3. Material Selection and International Standards
4. Vacuum Insulated Pipe vs Traditional Pipe: Practical Selection
Heat Leak Reduction and Thermal Efficiency
Cutting down on heat leaks is a top priority in cryogenic engineering. When too much heat seeps in, you don’t just lose liquid nitrogen, oxygen, argon, LNG, or hydrogen—you lose efficiency and money. Materials start to evaporate before you even get to use them, which hits both the process and your bottom line.
That’s why our Vacuum Insulated Pipe systems are designed for serious heat loss reduction. We keep vacuum levels at or below 10⁻² Pa, tailored to what your setup needs. Compared to standard cryogenic pipes, VIP systems slash heat leaks—especially when you’re moving fluids over long distances.
Here’s how it works in practice. One customer, a semiconductor plant in East Asia, swapped out their old insulated pipes for our Vacuum Insulated Pipe technology. The result? Far less nitrogen boiled off during transfer, and they saw a big boost in supply stability—even when running non-stop.
Complete Cryogenic Transfer System Integration
Insulated piping alone won’t cut it for reliable cryogenic transfers. At HL Cryogenics, we go further—we offer integrated solutions like Vacuum Insulated Flexible Hose, Vacuum Insulated Valves, Vacuum Insulated Phase Separators, Dynamic Vacuum Pump Systems, and Mini Tank options.
Take our Vacuum Insulated Flexible Hose. It’s built for situations where you need flexibility, vibration absorption, and easy installation. You get solid low heat leak performance, plus hassle-free connections between fixed equipment, storage tanks, and process lines.
When it comes to safety and control, our Vacuum Insulated Valves stand out. It keeps thermal losses way down at isolation points, which is a big improvement over regular valves that just rely on external insulation. The right valve design stops unwanted heat from creeping in, so you can trust your operations to run smoothly—especially in industrial gas setups.
Vacuum integrity is everything for these systems. If the vacuum pressure creeps up, insulation starts slipping and heat transfer goes up, compromising performance.
That’s where our Dynamic Vacuum Pump Systems come in. It constantly monitors and maintains the vacuum inside the jacket space, tackling anything from gas permeation and material outgassing to long-term vacuum decay.
This active vacuum management doesn’t just boost reliability—it’s essential for big LNG projects, hydrogen applications, and industrial gas plants that never stop running. If you need continuous operation and peace of mind, this is your answer.
Material Selection and International Standards
Cryogenic equipment has to handle some of the harshest conditions out there: freezing temperatures, constant pressure changes, and years of mechanical stress. That’s why we stick with high-grade materials like 304 and 304L stainless steel. These alloys don’t just resist corrosion—they keep their strength even when the temperature plunges.
At HL Cryogenics, we don’t cut corners. We build every product to meet international standards and hold ASME, CE, and ISO certifications. This means our equipment checks all the boxes, whether you need it for domestic projects or large-scale, regulated markets worldwide.
We’ve worked everywhere—from LNG terminals in Southeast Asia and gas plants in Europe to semiconductor lines in East Asia and hydrogen projects in the Middle East. Our team backs up EPC contractors, gas providers, and end users with engineering solutions made for their needs.
In cryogenic systems, phase control isn’t just a detail—it’s critical. If you don’t manage vapor generation and liquid flashing, you risk hurting both performance and safety. That’s where our Vacuum Insulated Phase Separator comes in. It’s designed to keep phases separate, pressure under control, and your supply steady. When you need reliability in your cryogenic delivery, it delivers.
For smaller-scale needs, our Mini Tank series fits the bill. These compact storage solutions keep liquid gas on hand—no more worrying about local supply, buffer capacity, or steady availability. You’ll find them in labs, medical centers, and factories across a wide range of industries.
● Precision Flow & Phase Control
Standard cryogenic pipe works fine for short runs where heat loss isn’t a huge concern. But when you need top-notch energy efficiency, automation, and a steady supply, vacuum insulated technology simply outperforms.
A well-designed vacuum insulated cryogenic pipe system keeps evaporation losses in check, runs more reliably, and requires less maintenance. That’s a big deal for industries like LNG infrastructure, semiconductor manufacturing, hydrogen, and large-scale industrial gas operations.
So how do you choose between traditional and vacuum insulated pipe? It mostly comes down to what your system needs, how it operates, and what costs look like over time. For high-performance cryogenic transfer, vacuum insulation just offers better thermal efficiency and reliability.
At HL Cryogenics, we don’t just deliver equipment—we bring deep engineering know-how, cutting-edge manufacturing, and international certifications to the table. Our team customizes solutions, whether you need vacuum insulated pipe, cryogenic hoses, valves, phase separators, or complete transfer systems. Reach out and let’s talk about what your application really needs.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
