At HL Cryogenics our standard lead time for a complete vacuum insulated piping system is 25- 45 calendar days from the final technical drawing approval and receipt of the confirmed advance payment. Applicable to standard static vacuum insulated pipe, cryogenic pipe and basic cryogenic transfer systems. 60 to 75 days, custom or dynamic vacuum arrangements to preserve engineering and performance integrity.
We provide compliant solutions for industrial gas applications, LNG infrastructure and liquid nitrogen systems in Europe, Southeast Asia, East Asia and the Middle East. All processes conform to the ASME B31.3, EN13480, ISO and JB/T 12665-2016 cryogenic engineering standards.
We have a fixed technical schedule of 45 days to achieve vacuum stability and heat leak reduction. We do not compress critical phases such as welding, vacuum processing or pressure testing.
This cycle includes engineering design review, material preparation, precision fabrication, high-vacuum insulation treatment, full performance testing and export packaging. Each phase is reliably coupled with vacuum insulated flexible hose, vacuum insulated valve and vacuum insulated phase separator components.
Table of Contents
1. Lead Time for Dynamic Vacuum & Special Components
2. Factors That Extend Lead Time
3. Real‑World Engineering Example
4. Partner with HL Cryogenics for on-time Delivery
●Lead Time for Dynamic Vacuum & Special Components
●Lead Time for Dynamic Vacuum & Special Components
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
Our Dynamic Vacuum Pump System installations take 30 to 60 days owing to additional calibration and functionality testing. The dynamic system ensures consistent performance under vacuum for highly reliable LNG and hydrogen applications.

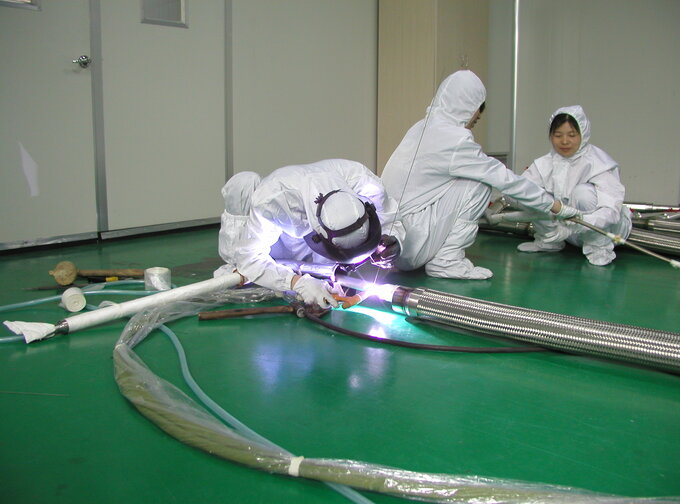

For identical systems: vacuum insulated Flexible Hoses takes 30 to 40 days; Vacuum Insulated Valve and vacuum insulated Phase Separator take 35 to 60 days. Mini Tank skid-mounted equipment extends delivery periods to 60 to 80 days.
● Real‑World Engineering Example

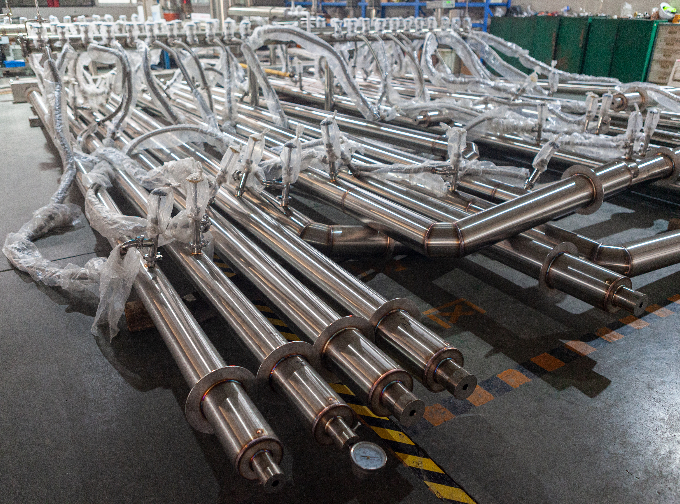

Our industrial gas company from Europe ordered a 180-meter DN50 vacuum insulated pipeline system for their liquid nitrogen transport system. We manufactured, tested, and packed the pipeline system using regular SS304 material and connectors within the span of 43 days. This was in line with our normal delivery schedule. Our pipeline system was able to reach its intended vacuum specifications.
The lead time can vary depending on project requirements:
Material change to SS316L: +7-10 days
Special gases (hydrogen or helium): +7-10 days
Custom fittings and flanges: +10-15 days
Vacuum dynamic pump system: +15-20 days
We verify any changes to the lead times before confirming the order.
● Partner With HL Cryogenics for On‑Time Delivery
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
