In comparing various insulation methods in cryogenic pipe installations, it is not enough to choose the option with the lower initial cost. Rather, the question is which insulation method will have the lower total cost over the lifetime of the facility. In most cases, vacuum insulated pipes (VIP) are far superior to conventional insulation when dealing with cryogenic piping systems used in the industry of liquid nitrogen, liquid oxygen, LNG, liquid hydrogen, or any other industrial gases.
HL Cryogenics has had over 30 years' experience in designing cryogenic transfer systems for industrial gas facilities, LNG facilities, semiconductor industry, hydrogen facilities, and biotechnology. From our experience in the lab and in practice, we can clearly state that vacuum insulated system decreases the amount of heat coming into the piping system by a factor of ten times compared to conventional insulation system.
Table of Contents
1. Understanding the Engineering Difference
2. Thermal Performance and Lifecycle Economics
3. Reliability, Maintenance, and Vacuum Stability
4. Application-Specific Considerations
● Understanding the Engineering Difference
The main difference between vacuum insulated pipes and regular insulations is that vacuum insulations deal with heat transfer processes in a different way than conventional materials. The heat transfer processes can be divided into three categories: conduction, convection, and radiation.
In turn, conventional insulation materials like polyurethane foam, mineral wool, elastomeric foam, cellular glass, and perlite reduce conductive heat transfer. These materials work sufficiently well at ambient or relatively low temperatures, but are sensitive to moisture, aging, thermal cycles, and deterioration from environmental factors.
Unlike conventional materials, vacuum insulations use different approach to minimize heat losses. Vacuum Insulated Pipe consists of an evacuated annular space between the process pipe and the jacket. The evacuated space almost eliminates convective heat transfer. Multi-Layer Insulation (MLI) minimizes the radiative heat transfer, while conductive heat transfer is limited by the supports only.
From the engineer point of view, vacuum insulated pipes provide one of the best thermal barriers among all current available methods.
For the applications where the working temperature can be -196°C, -253°C, or -162°C for LNG, it may make difference to have vacuum insulated pipe.
You’ve always got to look at the project itself before choosing between VIP and the usual insulation. The old-school approach still works if you’re dealing with short runs, regular temperature ranges, something temporary, or just need to keep costs down and the system doesn’t run round-the-clock.
But things change once you start handling cryogenic fluids over long distances, or you’re running equipment nonstop. If you’re working with expensive materials like liquid hydrogen, LNG, or you’re in industries where efficiency matters—semiconductors, pharma, biotech—that’s where vacuum insulation really stands out.
Take hydrogen for example. Liquid hydrogen is so cold that any tiny bit of heat coming in can really mess things up. Standard insulation just can’t compete. The industry counts on vacuum insulation for those cases.
Same goes for semiconductor plants. They need their process piping rock-steady—temperature and pressure can’t wander. So they use vacuum-insulated transfer lines to keep things locked in.
A lot of these systems also have to connect up with specialized gear: Mini Tanks, flexible vacuum-insulated hose assemblies, and some pretty advanced phase management hardware.
And when the setup needs to deal with movement, equipment that vibrates, or places where you can’t lay rigid piping, that’s where flexible vacuum-insulated hoses prove themselves. They let everything move as it must, but still guard against heat leaking in—a smart mix of flexibility and high performance.
Thermal Performance and Lifecycle Economics
Cost of initial installation remains the first and foremost reason why conventional insulation is preferred over other forms. But, experienced EPC contractors and operators of plants consider the performance of the insulations over the course of time rather than their cost during the initial installation.
Heat leak in cryogenic engineering means product leak, which results in pressure rise and energy consumption. In many cases, after several years of operations, the accumulated losses through this mechanism may exceed the cost of equipment used.
It is especially true for:
LNG receiving facilities in Southeast Asia
ASU facilities across East Asia
Cryogenic gas distribution facilities in Europe
Hydrogen infrastructure facilities in the Middle East
Semiconductor production facilities in Taiwan, South Korea, and Singapore
During transportation of valuable cryogenic fluid over large distances, using Vacuum Insulated Pipe, one may achieve thermal losses reduction in comparison with conventional insulation systems up to 90%.
But that's not only about reducing costs of operations. Operators gain additional advantages in terms of pressure stability, reduction of venting, and improvement of safety margins and predictability of operations.
Reliability, Maintenance, and Vacuum Stability

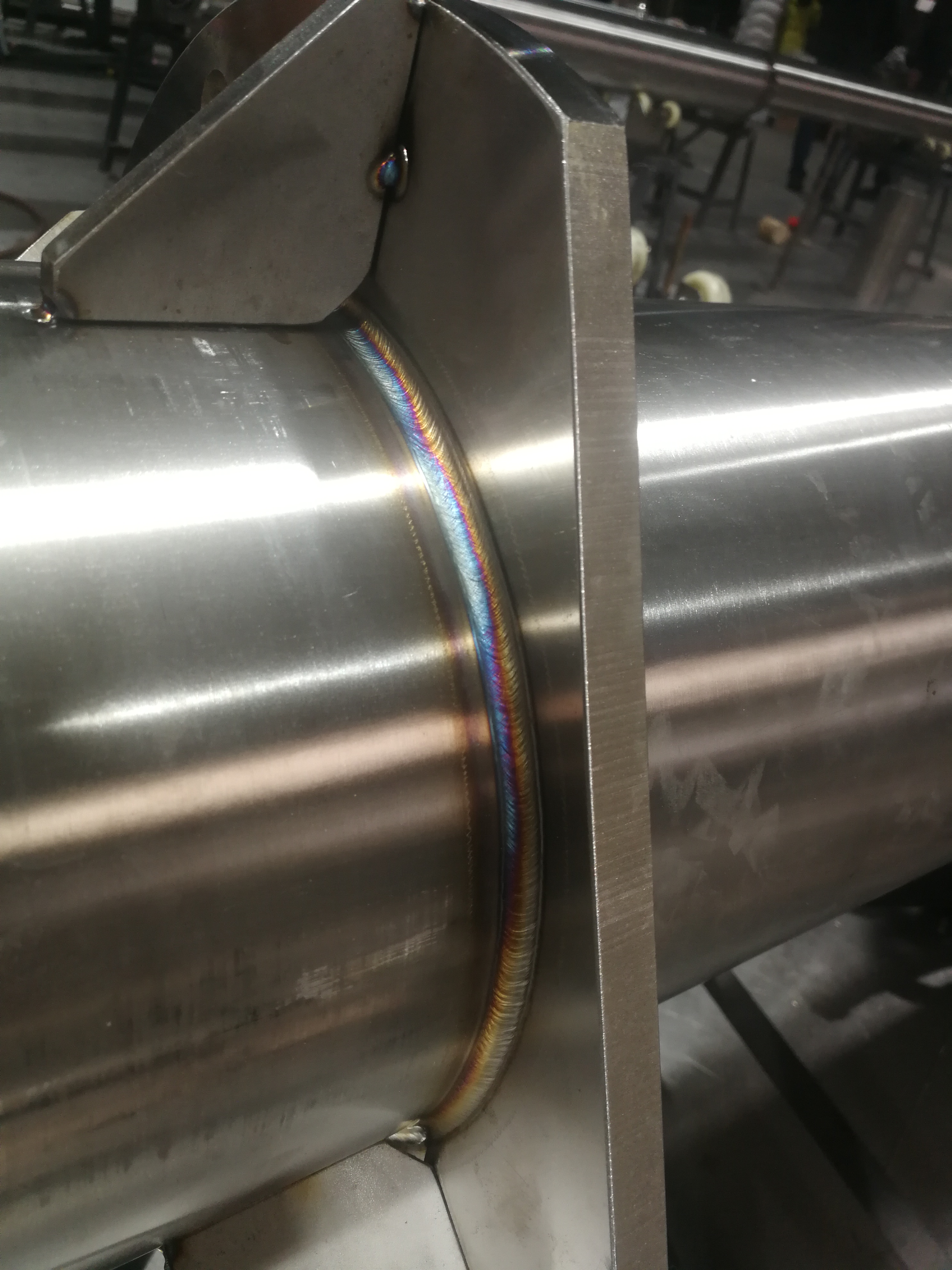

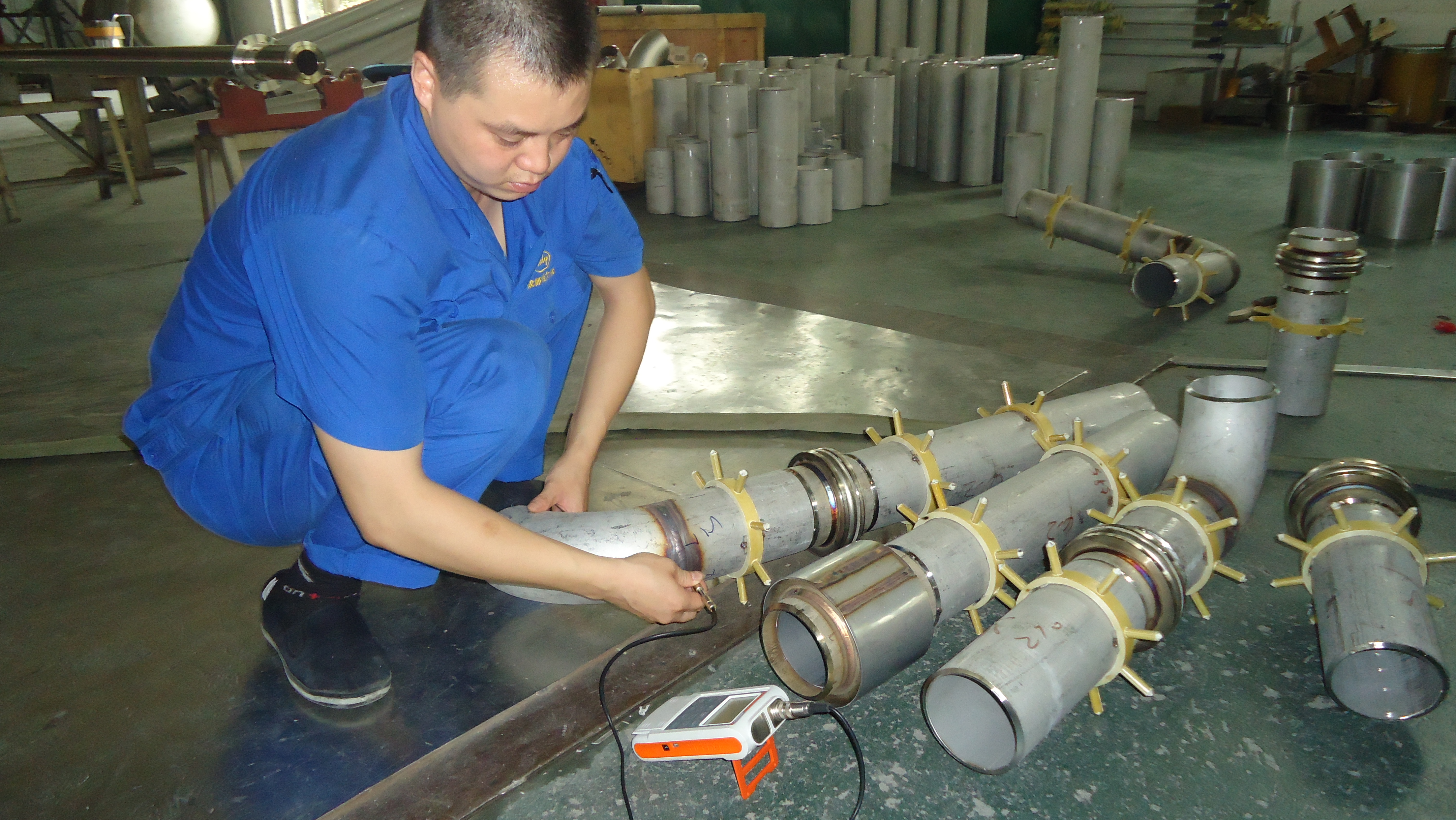

A lot of people think vacuum systems just get worse over time, but that’s not really true. Whether a vacuum stays stable mostly comes down to how it’s designed, what it’s made of, how well it’s put together, and how you maintain it.
At HL Cryogenics, we keep vacuum performance strong by focusing on high-quality vacuum processing, smart getter and adsorbent setups, and our own Dynamic Vacuum Pump System.
Older static vacuum systems rely completely on the vacuum that got set up during manufacturing. That works fine at first, but if things start to slip, nobody really notices until there’s a real drop in thermal performance.
With a Dynamic Vacuum Pump System, you get constant monitoring and ongoing maintenance. That keeps the vacuum in shape for the long haul. This really matters for big cryogenic transfer networks—long-term reliability goes up, and it’s way easier for operators to catch problems early and keep everything running smoothly.
We use the same thinking for components like the Vacuum Insulated Valve and the Vacuum Insulated Phase Separator.
The Vacuum Insulated Valve locks down one of the system’s weak spots by cutting down heat leaks. That means better process efficiency, less frost, and reduced maintenance headaches.

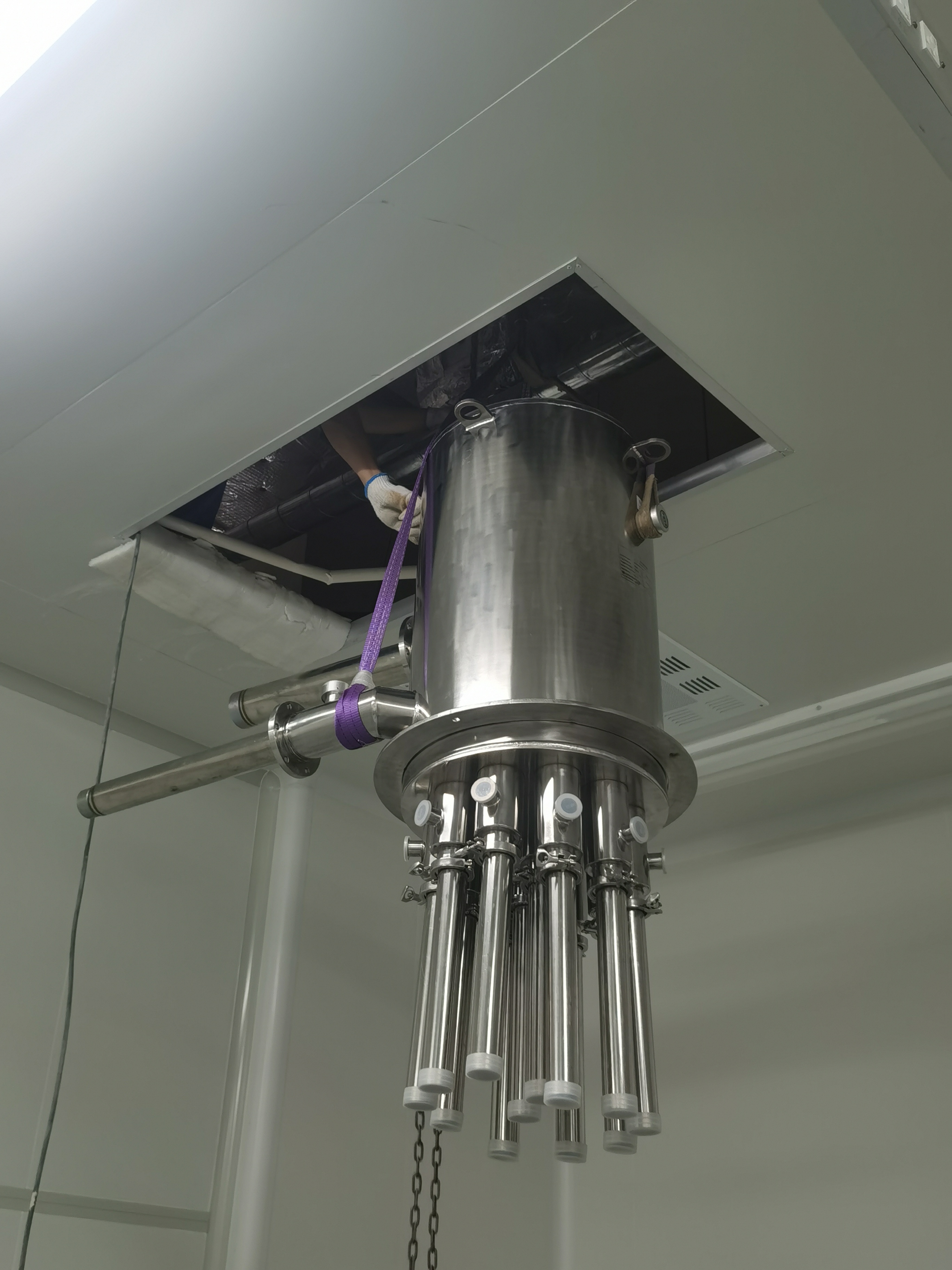

Then there’s the Vacuum Insulated Phase Separator. It’s got a different job—splitting vapor from liquid flow so that only pure liquid keeps moving downstream. You need that to keep operations steady, especially in demanding settings like semiconductor manufacturing, medical gases, or high-purity industrial gases, where even slight phase changes can throw everything off.
● Conclusion
We worked with an industrial gas facility that needed to connect liquid nitrogen storage tanks to several process users across a sprawling manufacturing site.
At first, the plan was to use regular insulated piping—mainly because it’s cheaper up front. But once we crunched the numbers, we realized this setup would bleed a surprising amount of nitrogen each year. Heat sneaks in, nitrogen starts to vaporize, and operating costs shoot up.
So we scrapped that idea and went with a vacuum insulated pipe system instead. We paired these pipes with vacuum insulated valves and dropped in vacuum insulated phase separators where they’d do the most good.
When the facility fired up the new system, the results spoke for themselves. Nitrogen usage dropped well below our initial estimates. Pressure stayed steadier throughout the network, maintenance headaches shrank, and operators noticed their processes ran smoother across the board.
Sure, the upfront cost was higher. But the savings from cutting nitrogen losses and trimming operating expenses paid off that investment pretty fast.
We’re seeing this scenario more often now. Plant owners are shifting away from buying just on price and focusing more on long-term value.
Honestly, the choice between vacuum insulation and standard insulation depends on your goals. If you’re just chasing the lowest capital expense, conventional does the job. But for most cryogenic setups, vacuum insulation simply outperforms—less product loss, better reliability, stronger safety, lower lifetime costs.
As industries scale up LNG, shift toward hydrogen, and build more advanced gas networks, the case for vacuum insulation just keeps getting stronger. But picking good insulation isn’t enough; projects succeed when you look at the whole picture—cryogenic design, vacuum tech, thermal control, and real-world performance over time.
That’s what we do at HL Cryogenics. We work with EPCs, gas companies, and operators to build cryogenic transfer solutions that fit their needs. If you’re thinking through your next project, we’d love to help you find the best engineering approach. Let’s talk.
