Vacuum Insulated Pipe (VIP) is essential when working with liquid hydrogen. It cuts heat leakage by blocking conduction, convection, and thermal radiation between the extremely cold fluid and the outside world. At about −253°C (20 K), even a small amount of heat sneaking in can crank up vapor generation, push up pressure, and waste expensive hydrogen. That’s why insulation isn’t just nice to have—it’s absolutely critical. At HL Cryogenics, we use a combination of high-vacuum insulation, multilayer insulation (MLI), low-conductivity supports, careful material selection, and smart vacuum management to keep heat at bay. If you get your cryogenic transfer system right, you’ll see much less boil-off, steadier transfer, and lower cooldown losses compared to old-school piping solutions. But for hydrogen in particular, you can’t judge VIP performance by the pipe alone—you have to look at the whole system and how every element interacts.
Liquid hydrogen is in a league of its own when it comes to thermal challenges. With its boiling point at about 20.3 K (−252.9°C), there’s a massive temperature gap between the hydrogen and its surroundings. Any heat creeping in can quickly turn the liquid to gas, set off two-phase flow, ramp up the pressure, and bite into your usable hydrogen inventory.
Here’s where VIP really steps up: it tackles all three major ways heat gets in. A high vacuum inside the pipe’s annular space stops convection in its tracks. MLI slashes radiation between the warm jacket and the cold interior. And those carefully engineered supports? They make sure solid conduction is kept to a bare minimum. But the real secret is that you can’t just focus on vacuum. Top-notch performance depends on how well everything comes together: the vacuum level, the way MLI is installed, support design, plus how you handle thermal bridges, joints, valves, and all the connections out in the field. Every detail counts.
Phase Separator

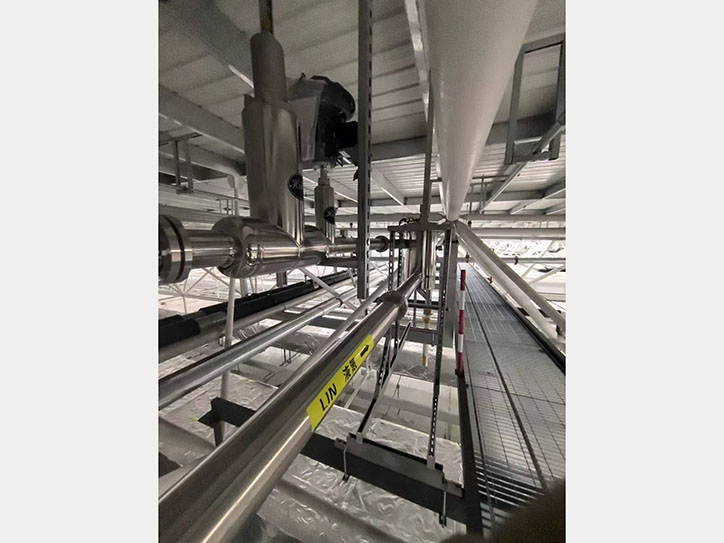

Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Engineering the Vacuum Insulation System
2. Valves, Flexible Hoses and Phase Management
3. Pressure, Thermal Contraction and Mechanical Design
4. Applications Across Global Cryogenic Industries
● Engineering the Vacuum Insulation System
At HL Cryogenics, we build our vacuum insulated pipes with a straightforward yet effective setup: there's an inner process pipe, and around that, an outer vacuum jacket. The space between them gets pumped out, creating a strong thermal barrier. Then, we pack in several layers of reflective insulation to block out radiative heat. Low-conductivity spacers keep the inner and outer pipes lined up, but they don’t let much heat sneak through.
Material choice matters just as much as the engineering. We almost always use austenitic stainless steels in cryogenic systems. They hold up well in the cold, don’t rust easily, weld clean, and keep their mechanical properties when things get chilly. If you’re working with hydrogen, we check everything—material compatibility, quality of welds, surface cleanliness, pressure specs, how the metal shrinks in the cold, and any tricky hydrogen effects. All of this gets measured against real-world operating conditions and whatever cryogenic standards apply.
One thing that gets overlooked: pulling a good vacuum at the start isn’t enough. Over time, leftover gases, tiny leaks, water vapor, and even outgassing from inside surfaces can creep in and mess with vacuum quality. If pressure inside the jacket climbs, gas conduction ramps up, and the whole system loses its edge against heat transfer.
To deal with that, we use our Dynamic Vacuum Pump System. Instead of just relying on the vacuum we set up during manufacturing, this system keeps things in check during operation. It can evacuate vacuum spaces as needed—either nonstop or on a fixed schedule, depending on how things are set up. That’s a game-changer for big installations, complex transfer networks, or anywhere long-term upkeep matters. With this approach, clients don’t have to worry about losing thermal performance over time.
● Valves, Flexible Hoses and Phase Management
A cryogenic transfer line is only as good as its weakest part. Traditional valves, joints, and flexible connections often end up being the biggest sources of unwanted heat transfer. That’s where our Vacuum Insulated Valve comes in—it extends vacuum insulation right through the valve assembly, cutting down on heat leaks without sacrificing flow control or isolation.
When you need to handle movement, vibration, the quirks of loading arms, or mismatched equipment, you don’t have to fall back on uninsulated connections that waste energy. A Vacuum Insulated Flexible Hose gives you the flexibility you need while keeping everything properly insulated. Each hose needs to be designed with care—taking into account things like pressure, bend radius, fatigue, loads from connections, thermal contraction, and what exactly you’re transferring.
And then there’s the Vacuum Insulated Phase Separator. Its job is to manage liquid-gas separation in a controlled way. In cryogenic systems, vapor forms during cooldown or regular operation, and if you don’t handle it, that vapor can mess with your liquid supply downstream. Proper phase management keeps liquid delivery steady and protects your downstream processes from unexpected hiccups.
● Pressure, Thermal Contraction and Mechanical Design
There’s no one-size-fits-all pressure rating for every hydrogen VIP setup. Each project is different—cryogenic piping might run at low, moderate, or even pretty high pressures depending on what’s needed. That means things like pipe thickness, fittings, bellows, valves, flange classes, welds, relief design, and testing all have to match the actual design pressure and temperature you’re working with.
With liquid hydrogen, thermal contraction is a big deal. Stainless-steel piping shrinks a lot as you cool it from room temperature down to about 20 K. If you build a long vacuum insulated pipe system, you can’t just hope for the best. You need to engineer the right mix of flexible routing, anchors, guides, supports, expansion joints, and stress analysis. Skip that, and you risk damaging joints, supports, connected equipment, or the vacuum jacket—even if your insulation works perfectly.
We don’t just look at isolated parts; our engineering approach covers the whole transfer path. One project might blend vacuum insulated pipe, flexible hose, valves, phase separators, a dynamic vacuum pump, and maybe a mini tank, all based on what the process really calls for. The connections between these pieces need extra care, since every interface can bring in unwanted heat.
This thinking isn’t just for hydrogen. We also design cryogenic transfer systems for things like industrial gases, liquid nitrogen, LNG, and other ultra-cold fluids. But don’t treat LNG, LN₂, LOX, and LH₂ as if they’re all the same. Each one needs its own take on pressure, temperature, materials, safety, cleanliness, and process controls. There’s no shortcut here—each application deserves its own careful assessment.
● Applications Across Global Cryogenic Industries

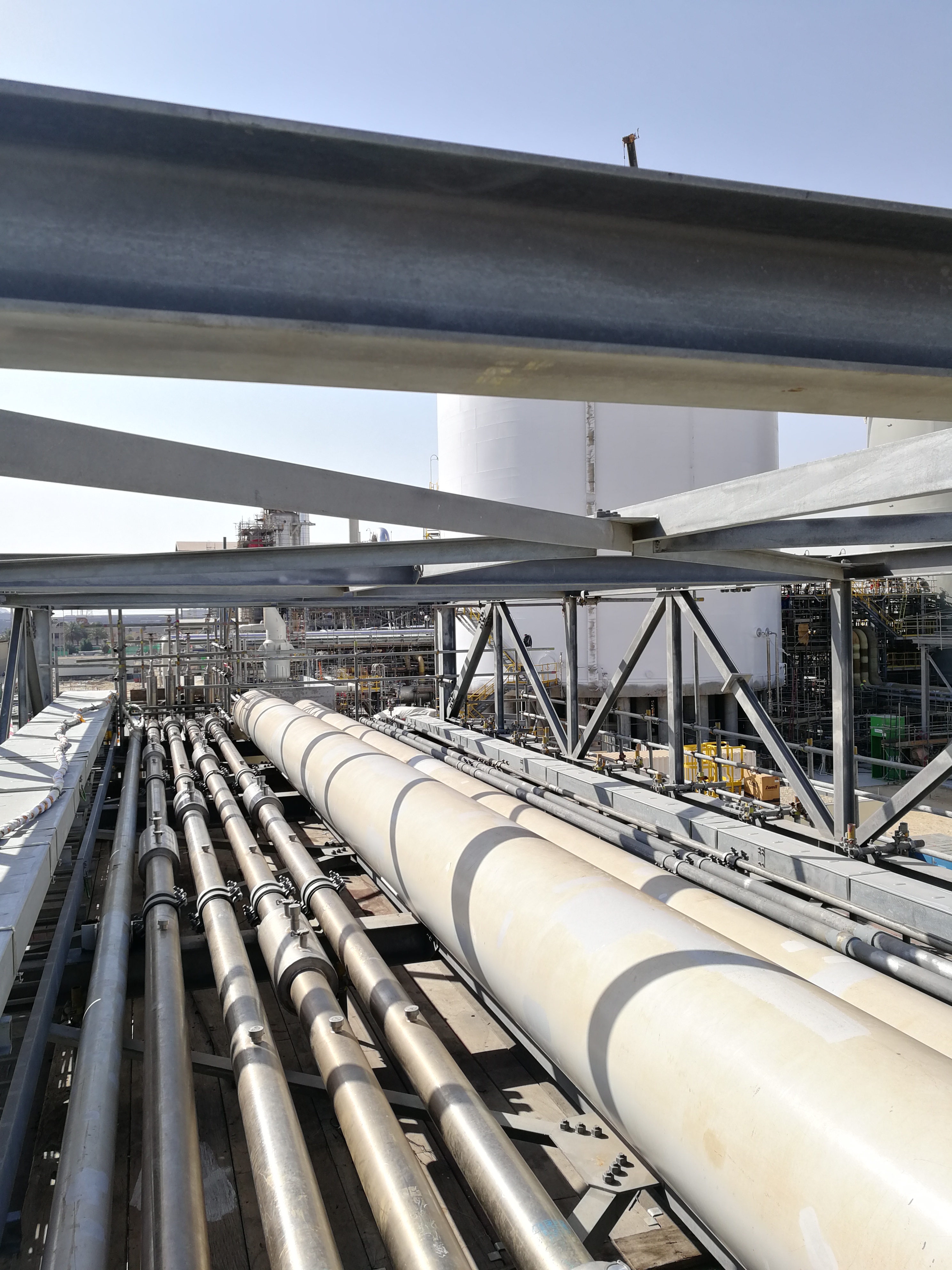

Hydrogen and cryogenic projects—whether we're talking about hydrogen and LNG infrastructure in the Middle East and Southeast Asia, semiconductor and electronics plants in East Asia, or industrial gas operations in Europe—all demand the same serious design discipline. Each type of facility brings its own set of priorities to the table. Semiconductor fabs, for example, need an ultra-stable supply of liquid nitrogen. LNG terminals care a lot about reliable, large-volume transfer. And industrial gas plants? They want tough, easy-to-maintain distribution networks.
HL Cryogenics has experience here. We carry ASME, CE, and ISO certifications, which means our manufacturing and quality systems meet international standards. We don’t deal in off-the-shelf solutions; we tweak our product designs and fabrication processes for each country and project—always sticking to the specific codes and agreements in play. You’ll see references to ASME, EN, ISO, PED, and whatever engineering specs the client or EPC calls for.
When it comes to minimizing hydrogen heat leaks, just slapping some insulation on a pipe isn’t enough. The vacuum’s quality, multi-layer insulation (MLI) design, thermal bridges, your choice of materials, mechanical stresses, how you join everything together, valves, hoses, the behavior of different phases, and—don’t forget—long-term vacuum stability all play a part in how well the system works once it’s in the field.
That’s why we don’t force-fit a single design. At HL Cryogenics, we build cryogenic systems to suit real-world operating conditions—not just a standard template. Whether the project involves hydrogen, LNG, liquid nitrogen, or any other cryogenic fluid, we’re here to create custom Vacuum Insulated Pipe and cryogenic transfer solutions tailored to your pressure, temperature, flow, routing needs, and the right engineering standards. Reach out, and let’s talk about what your project really needs.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
