At HL Cryogenics, our mission centers on minimizing both liquid and heat loss to the lowest possible levels in every cryogenic transfer system we build. Achieving this is far from simple—it requires a careful blend of cutting-edge engineering, advanced vacuum technology, and a relentless commitment to quality assurance. Each component in our lineup, from Vacuum Insulated Pipes and Flexible Hoses to specialized cryogenic piping, is meticulously engineered to maximize thermal efficiency. In cryogenics, even the smallest heat leak can have a significant impact, causing unnecessary boil-off, reduced system performance, and increased operational costs. That’s why our systems are trusted for demanding applications—whether it’s transferring liquid nitrogen and oxygen in industrial settings, or handling LNG in energy infrastructure.
The foundation of our approach is vacuum insulation, a technology that underpins the superior performance of our pipework and hoses. By establishing a high-quality vacuum between the inner and outer walls, we nearly eliminate both convective and conductive heat transfer. But we don’t stop there. Our systems incorporate multiple layers of reflective insulation, which significantly reduces radiative heat gain—the final frontier in thermal management. The result: systems that achieve exceptionally low boil-off rates, preserving the purity and volume of the cryogenic fluid over long periods and distances.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation
However, maintaining a stable vacuum over the lifetime of an installation is a complex challenge. Environmental factors, minute leaks, and outgassing can erode insulation performance over time. To tackle this, we deploy our Dynamic Vacuum Pump System, an intelligent, automated solution that continuously monitors vacuum integrity throughout the network. This system instantly compensates for any pressure changes, no matter how minor, caused by temperature fluctuations or microscopic leaks. This real-time correction ensures that insulation remains uncompromised, keeping your operations running at peak efficiency year after year, even in environments prone to unpredictable conditions.

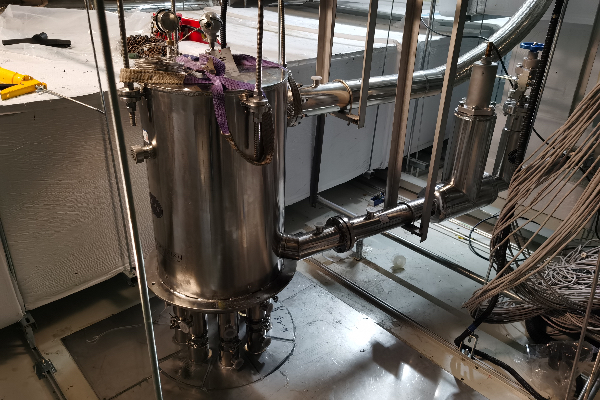

Critical control points within any cryogenic system are potential sources of heat ingress. Our Vacuum Insulated Valves are specifically designed to address this vulnerability. By extending vacuum insulation to these essential components, we prevent them from becoming thermal bridges that could compromise overall system performance. In parallel, our Phase Separators play a vital role in maintaining the right fluid phase throughout the process. They expertly separate vapor from liquid, preventing vapor lock and ensuring smooth, continuous transfer and stable system operation, which is crucial for both safety and efficiency.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
For installations that demand local storage or buffering—such as semiconductor manufacturing facilities—we offer robust Mini Tanks. These units are engineered for compactness and performance, enabling on-site storage that reduces the number of required refills and minimizes cumulative heat loss. In industries where even minute temperature fluctuations can disrupt processes and reduce product yields, our systems deliver ultra-pure cryogens with unparalleled consistency. Our Flexible Hoses are specifically designed for safe, convenient routing in tight, cleanroom environments, maintaining top-tier insulation without sacrificing maneuverability or cleanliness.
● Operational Safety Managed by Valve and Valve Box
The aerospace sector depends on our solutions for the safe, reliable handling of liquid oxygen and nitrogen. Our pipes and valves are critical in test stands and ground support systems, where they maintain strict thermal control to guarantee consistent fuel and oxidizer delivery. By minimizing cryogen loss, we help enhance both safety and operational efficiency—key priorities when every drop and every degree matter.
In the medical realm, particularly in cryopreservation and medical gas supply, our insulated hoses and flexible lines support the safe, hygienic, and efficient transport of cryogenic fluids. By reducing waste and adhering to stringent hygiene and safety protocols, we help healthcare providers maintain compliance and reliability in life-critical applications.
● Precision Flow & Phase Control
On the energy front, LNG terminals and distribution networks rely on our integrated solutions to achieve low-loss, long-distance transfers. Our vacuum-insulated pipes and Dynamic Vacuum Pump System drastically reduce both economic and environmental costs, while our Phase Separators ensure that only the desired liquid or gas phase is delivered. This level of control directly translates into improved reliability, reduced maintenance, and higher overall system efficiency.
Across every industry we serve, we are unwavering in our adherence to international safety and quality standards. From design and prototyping to testing and manufacturing, every product is built for durability, reliability, and minimal maintenance—even when faced with harsh or variable industrial conditions. Our engineering teams are constantly innovating, refining our processes, and pushing the boundaries of what’s possible in cryogenic thermal management. We continually upgrade our materials, welding techniques, and insulation strategies to consistently exceed industry benchmarks.
By integrating all these advanced technologies—Vacuum Insulated Pipes, Flexible Hoses, Dynamic Vacuum Pump Systems, Insulated Valves, Phase Separators, and Mini Tanks—we provide more than just high-performance components; we deliver fully engineered cryogenic solutions tailored to your unique needs. This comprehensive approach ensures maximum efficiency, minimized losses, and elevated safety, regardless of your application or industry sector.
If your organization requires a custom-engineered cryogenic system that delivers outstanding performance, efficiency, and reliability, HL Cryogenics is ready to partner with you. Contact us to discuss your specific requirements and discover how our expertise and technology can help you achieve your operational goals. Let’s work together to build a solution that not only meets, but exceeds your expectations for thermal performance and system reliability.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
