The Dynamic Vacuum System is revolutionizing vacuum insulated piping (VIP) applications, offering a robust solution for industries requiring precision and efficiency in cryogenic fluid transportation. This article explores the features, advantages, and applications of Dynamic Vacuum System, highlighting its pivotal role in modern industrial setups.
Table of Contents
1. How the Dynamic Vacuum System Works
2. Key Advantages of the Dynamic Vacuum System
3. Applications of the Dynamic Vacuum System
4. Conclusion
● How the Dynamic Vacuum System Works

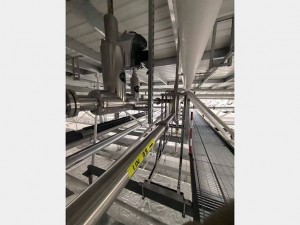

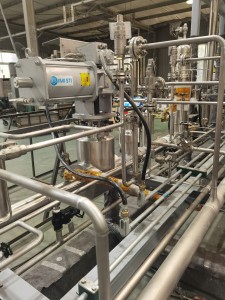

In a Dynamic Vacuum System, vacuum insulated products are installed on-site, and their independent vacuum chambers are interconnected using jumper hoses. These chambers are then linked to one or more vacuum pumps via pump-out hoses. The vacuum pumps continuously maintain a stable vacuum level across the system, ensuring consistent thermal insulation and minimizing cold loss.
This approach contrasts with traditional static systems, where vacuum levels degrade over time, leading to increased cold loss and maintenance needs. Dynamic Vacuum System provides a proactive solution, eliminating the need for secondary vacuum treatments.
● Key Advantages of the Dynamic Vacuum System
Superior Thermal Efficiency
DVS maintains a high vacuum level, reducing cold loss and preventing condensation or frost on the surface of VIP products, even in humid environments.
Simplified Maintenance
Unlike static systems, which require periodic re-vacuuming of each VIP product, DVS centralizes maintenance around the vacuum pump. This is especially beneficial in confined or hard-to-access installations.
Long-Term Stability
By continuously regulating vacuum levels, DVS ensures reliable insulation performance over extended periods, making it an ideal choice for critical industrial processes.
● Applications of the Dynamic Vacuum System

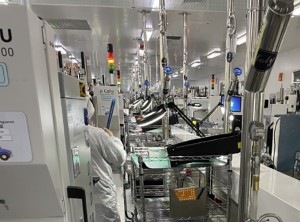

The Dynamic Vacuum System is widely used in industries such as biopharmaceuticals, electronics, chip manufacturing, and laboratories. Its ability to deliver consistent performance and lower maintenance costs makes it a preferred choice in sectors where precision and reliability are paramount.
● Conclusion
The Dynamic Vacuum System represents a significant advancement in the field of vacuum insulated piping. By combining innovative design with practical maintenance advantages, it offers a sustainable solution for industries handling cryogenic fluids. As businesses strive for greater efficiency and cost-effectiveness, DVS is poised to become a standard in VIP applications.
For more information, contact Chengdu Holy Cryogenic Equipment Co., Ltd.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
