A solid LNG cryogenic piping system does more than just move liquid from the storage tank to the end-user’s equipment—it has to keep heat out, hold pressure steady, cut down on vapor formation, and handle mechanical stress without a hitch. At HL Cryogenics, we take all the details into account: LNG flow rate, operating and max pressure, temperature swings, pipeline length and routing, elevation changes—every factor that could affect performance. We start with Vacuum Insulated Pipe as the core of the system, since its vacuum insulation does a much better job reducing heat loss from conduction, convection, and radiation than traditional insulation. Then, depending on the facility’s needs, we add in Vacuum Insulated Flexible Hose, Vacuum Insulated Valves, Phase Separators, and Mini Tank units wherever extra flexibility, isolation, phase control, or local storage is needed. Our real goal isn’t just moving LNG around—we make sure it reaches your process equipment in the right thermodynamic state, safely and efficiently.
Phase Separator

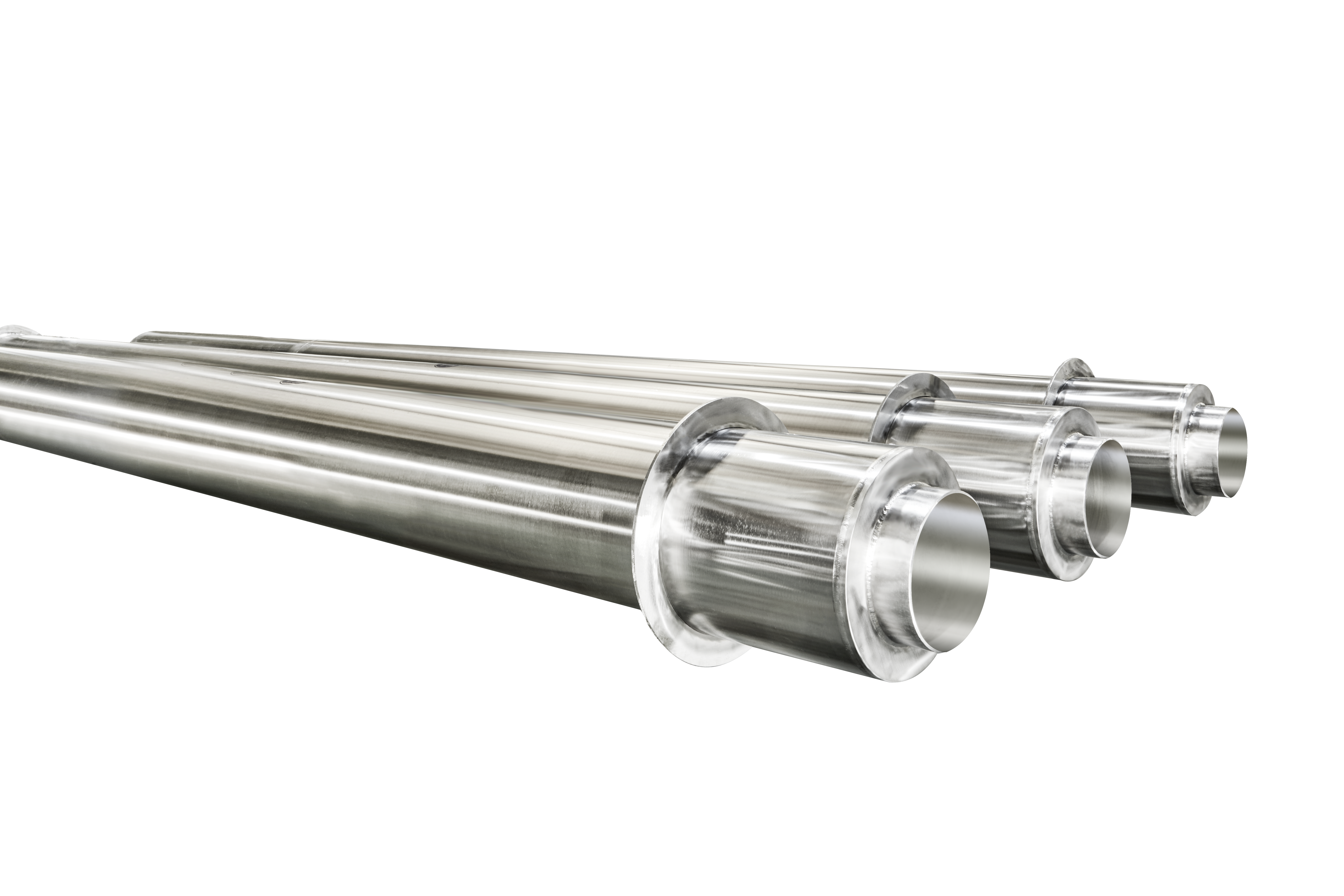

Vacuum Insulated Pipe
Vacuum Insulated Flexible Hose
Vacuum Insulated Shut-off Valve
Table of Contents
1. Engineering the LNG Transfer Route
2. Vacuum Insulation, Heat Leak Reduction, and Long-Term Vacuum Stability
3. Valves, Flexible Hoses, Phase Control, and System Safety
4. Real-World LNG System Integration and Global Applications
● Vacuum Insulation, Heat Leak Reduction, and Long-Term Vacuum Stability
When we design an LNG cryogenic pipe system, we start with a solid foundation — the full process and mechanical design basis. It's not just about picking a pipe size and calling it a day. We dig into the details: the flow rate, LNG makeup, operating temperature, inlet and outlet pressures, allowable pressure drop, line length and elevation changes, transfer frequency, how the system cools down, and where liquid could get trapped.
Choosing the right pipe size is always a balancing act. If you make the line too small, you'll deal with high hydraulic losses, maybe even flashing issues. But making it too big drives up surface area, inventory, the time and energy it takes to cool things down, and, frankly, the cost of the whole system.
There's also the challenge of thermal contraction. Stainless steel piping shrinks a lot as it drops from room temperature to LNG service temperatures. That’s why we typically go with austenitic stainless steel — it handles the cold, resists corrosion, and welds well.
Each project is unique, so we tailor engineering elements like fixed points, guides, expansion joints, flexible sections, supports, and nozzle loads to fit the job. We stick to recognized cryogenic engineering standards — ASME, EN, ISO, you name it. HL Cryogenics has ASME, CE, and ISO certifications, so we’re ready to build systems for projects across the globe and meet whatever local codes, standards, and specs are required.
● Valves, Flexible Hoses, Phase Control, and System Safety
A cryogenic transfer system is only as good as its weakest part. That’s why you can’t just focus on the big pieces — valves, connections, flexible sections, and phase-management gear all matter when you’re designing the system. Take a standard, uninsulated valve: it basically acts like a little heat bridge and lets unwanted heat right into your system. Swap that out for a Vacuum Insulated Valve, and the vacuum jacket wraps the entire cryogenic flow path, cutting down on heat creeping in at those isolation and control points.
Now, if your setup needs to handle movement, vibration, or tricky alignment — or you just need a flexible connection between two pieces of equipment — a Vacuum Insulated Flexible Hose does the job. But you can’t grab just any hose off the shelf. You need to look at pressure ratings, temperature limits, how much you’ll bend it, how much it’s expected to move, what kinds of connections you need, and even the cycle of operations.
Here’s something else: even the best insulation can’t stop all vapor formation. When you first cool down the system, run it off and on, drop the pressure, or move liquid a long way, you’ll still get some vapor. That’s where a Vacuum Insulated Phase Separator comes in. If you want smooth, steady liquid delivery, you need one. It sits in the line, pulls the excess vapor out of the liquid, and keeps that vapor from messing with equipment further downstream. If the demand at your end point rises and falls, sticking a Mini Tank nearby gives you a handy buffer or a spot for local storage.
Don’t forget about pressure safety. Trapping LNG between two closed valves is asking for trouble, because as it warms up, the pressure shoots up, fast. That’s why you want thermal relief devices in all the right spots and properly sized for your system.
The bottom line? You have to think of every component as part of one, integrated system. When you do, you end up with a setup that’s safer, more reliable, and keeps the liquid phase stable — instead of just buying parts piece by piece and hoping they all work together.
● Real-World LNG System Integration and Global Applications

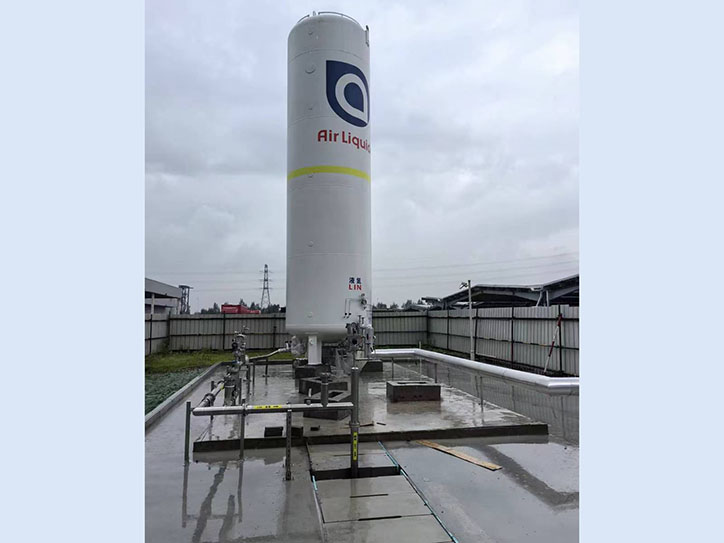

Consider an LNG installation where a storage tank supplies process equipment through a long outdoor pipeline with several isolation points and equipment connections. Conventional insulation may allow sufficient environmental heat ingress to generate vapor along the route, while repeated shutdown and restart cycles increase cool-down losses and produce unstable two-phase flow. Our engineering approach would use Vacuum Insulated Pipe for the main transfer route, Vacuum Insulated Flexible Hose at equipment interfaces, Vacuum Insulated Valve assemblies at isolation points, and a Vacuum Insulated Phase Separator near equipment requiring consistent liquid delivery; where appropriate, a Dynamic Vacuum Pump System would support long-term vacuum integrity. The result is an integrated cryogenic transfer system designed around hydraulic, thermal, mechanical, and operational requirements rather than a collection of individual components. These principles apply not only to LNG terminals and LNG infrastructure in Southeast Asia, but also to liquid nitrogen system installations at semiconductor facilities in East Asia, industrial gas applications in Europe, and cryogenic hydrogen projects in the Middle East. At HL Cryogenics, we evaluate each project from storage tank to end-user equipment and provide customized cryogenic engineering solutions according to the required operating conditions and applicable standards. EPC contractors, plant engineers, and procurement teams are welcome to contact us with their P&ID, flow rate, pressure, temperature, pipe sizes, routing, and project specifications for a detailed technical evaluation.
● Precision Flow & Phase Control
We build our Vacuum Insulated Valve with a special thermal break, so the actuator and stem stay at room temperature—even when the valve’s handling liquid helium or nitrogen at freezing-cold levels. This keeps the valve running smoothly and stops ice from messing with the seals or causing things to jam up. When we tie the Vacuum Insulated Valve straight into the vacuum-jacketed network, we cut out the big heat leaks you get with old-school foam insulation.
Long cryogenic piping runs into another problem: two-phase flow. To keep that under control, we use the Vacuum Insulated Phase Separator. It vents off the unwanted gas that forms as the liquid moves through the line, keeping delivery pressure steady. That way, whether you're fueling up a satellite or running a semiconductor lithography tool, your equipment gets a reliable, dense stream of liquid—just what you need for smooth operation.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
