At HL Cryogenics, we recognize that maintaining unwavering temperature stability in the harshest environments isn’t just a technical achievement—it’s a fundamental driver of innovation and efficiency across high-stakes industries. From advanced manufacturing to cutting-edge research, the ability to precisely manage cryogenic fluids underpins breakthroughs in fields ranging from aerospace to semiconductor fabrication, medical imaging, and energy storage. This understanding is at the heart of our mission: to engineer and deliver Vacuum Insulated Pipe (VIP) systems that set new standards for performance, reliability, and longevity, even under the most demanding conditions.
Our VIP systems are meticulously designed from inception to handle the rigorous challenges posed by volatile cryogens like liquid hydrogen and liquid helium. These fluids, characterized by their extremely low boiling points and sensitivity to heat ingress, require insulation solutions that transcend conventional approaches. To achieve this, we integrate advanced multi-layer super insulation into every Vacuum Insulated Pipe and Vacuum Insulated Flexible Hose we manufacture. This isn’t just a matter of stacking materials—it’s a carefully orchestrated thermal defense, combining ultra-high vacuum interiors with multiple reflective layers that intercept and redirect radiant energy before it can breach the core. Each element, from the choice of substrate to the assembly of reflective shields, is optimized through precision engineering and rigorous simulation to minimize every conceivable path of heat transfer.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation
We go beyond the traditional view of cryogenic hoses as mere flexible connectors. In mission-critical setups—be it an aerospace propulsion test stand, a hospital MRI suite, or a quantum computing facility—a flexible hose must do more than adapt to tight installation spaces. It must deliver the same robust mechanical integrity and thermal resistance as rigid pipes, ensuring the continuity of the thermal envelope even during pressure fluctuations, physical movement, or exposure to vibration. Our hoses are built to withstand these stresses without compromising the vacuum seal or sacrificing insulation performance, a balance achieved through state-of-the-art materials science and innovative construction techniques.

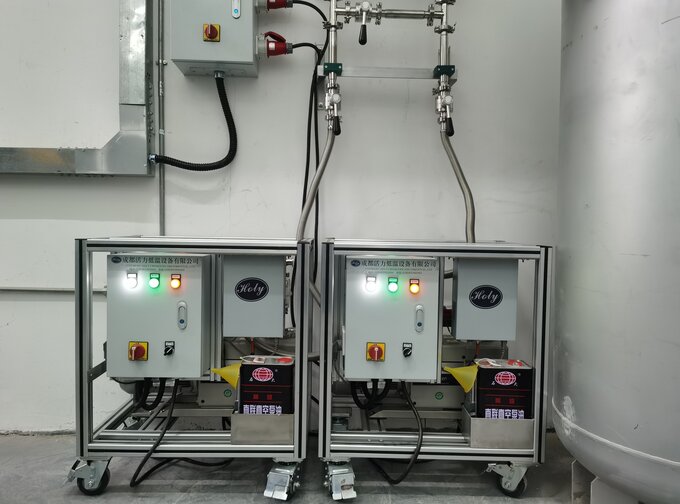

At the core of our insulation strategy lies the Dynamic Vacuum Pump System, a technology that elevates our solutions far above passive insulation methods. Over time, all vacuum systems are vulnerable to outgassing—a slow release of trapped molecules from materials that can degrade insulation performance and increase heat leak. Our dynamic vacuum management actively monitors and evacuates these gases, preserving ultra-high vacuum conditions not just for months, but for years on end. This active approach dramatically reduces maintenance intervals and ensures that insulation performance remains consistently high, a critical advantage in applications where even minor thermal fluctuations—such as the formation of flash gas in semiconductor fabs—can have costly consequences.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.

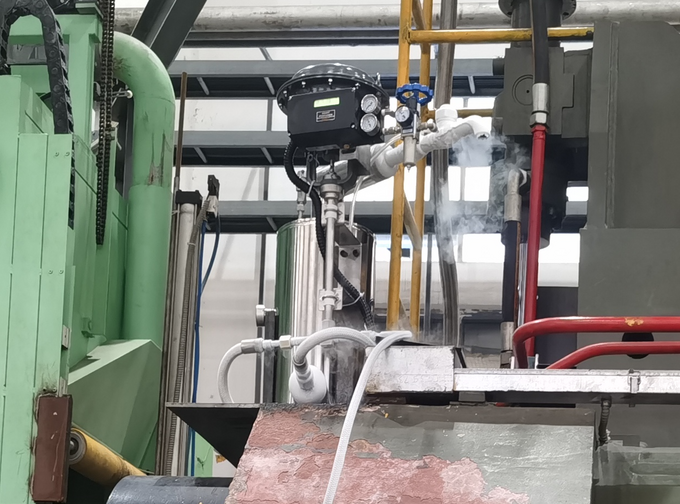

Our Vacuum Insulated Valves represent another layer of assurance in system integrity. Designed with extended stems and vapor-sealing packing, they eliminate common operational headaches such as frost heave, ice buildup, and sluggish actuation, which can otherwise compromise both safety and process control. These valves serve as precise, reliable control points, enabling operators to modulate flow and isolate sections of the network without risking thermal compromise.
● Operational Safety Managed by Valve and Valve Box

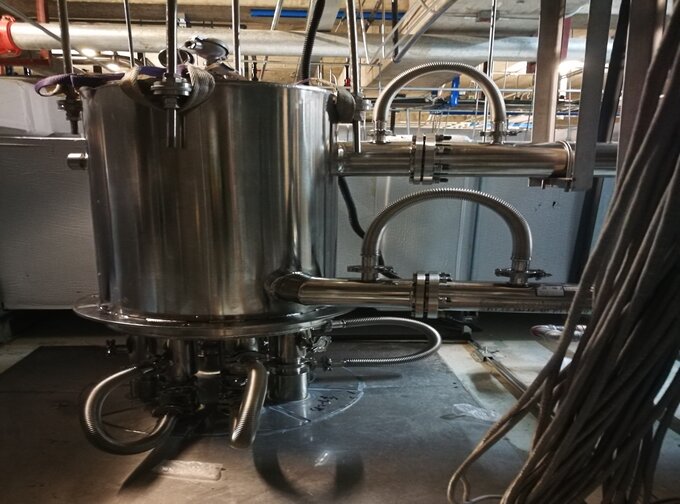

For applications involving phase changes—such as the transfer and storage of liquid nitrogen or oxygen—our Vacuum Insulated Phase Separators play a pivotal role. By employing advanced baffle designs and harnessing gravity-driven separation, these units effectively remove entrained gas from the liquid stream, delivering only sub-cooled, high-purity liquid to downstream processes. This not only improves cooling efficiency but also safeguards sensitive equipment and reduces the risk of erratic temperature swings.
In scenarios where space is at a premium or where localized storage is needed, our Mini Tanks bring the same rigorous vacuum insulation technology to a compact, rugged form factor. These tanks are engineered for easy integration into existing systems, providing reliable, loss-minimized storage for cryogenic fluids in laboratories, clinics, or satellite fueling operations.
● Precision Flow & Phase Control
Quality and compliance are non-negotiable at HL Cryogenics. Every component we produce—from the smallest flexible hose to the largest storage tank—undergoes exhaustive Factory Acceptance Testing. We rigorously validate against global standards such as ASME and CE, ensuring that our customers can deploy our solutions with full confidence, whether the end use is in LNG transport, biomedical research, or the launchpad of a next-generation rocket.
Our holistic approach to system design extends to every detail: we carefully engineer internal pipe supports from low-conductivity materials to minimize solid heat bridges, while our Dynamic Vacuum Pump eliminates residual gas conduction. This integrated methodology ensures that valves, separators, tanks, and pipes work in unison, preserving cryogenic temperatures and minimizing boil-off losses to the absolute limits imposed by physics.
Through this relentless pursuit of performance and innovation, HL Cryogenics is helping shape a future where energy efficiency, reliability, and precision are not optional but inherent to every cryogenic installation. Our commitment doesn’t end at delivery; we partner with clients to tailor solutions that address their unique challenges, from system design to ongoing maintenance and optimization. If you’re confronting a demanding thermal application or seeking to minimize operational losses in cryogenic transfer, our expert team stands ready to provide the advanced, customized vacuum-insulated solutions that today’s critical projects demand. With HL Cryogenics, you’re not just selecting equipment—you’re choosing a partner invested in your long-term success and the advancement of global cryogenic technology.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
