At HL Cryogenics, we know that higher semiconductor yields and the growing demands of aerospace and medical research leave no room for error when it comes to thermal stability. That’s why we’ve built a full range of cryogenic transfer solutions—because the toughest cooling challenges don’t wait for anyone.

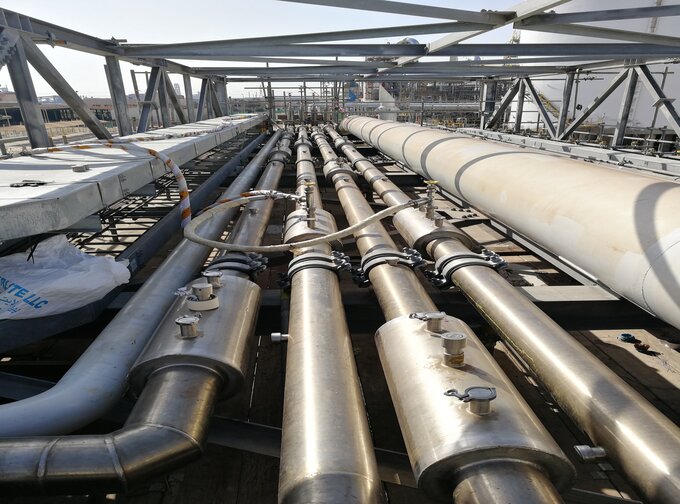

Our edge starts with the way we design our Vacuum Insulated Pipe and Flexible Hose. We use advanced multi-layer insulation inside a high-vacuum annular space, which basically wipes out convective and radiative heat transfer. The result? Liquid nitrogen, oxygen, or helium gets exactly where you need it, and you barely lose any quality along the way.
We approach engineering with one simple rule: a cryogenic pipe is only as good as its vacuum. That’s why we use our Dynamic Vacuum Pump System in complex setups. It keeps the vacuum space clear in real time, pulling out any gases that try to sneak in from inside materials or tiny leaks—so your insulation holds up year after year.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation

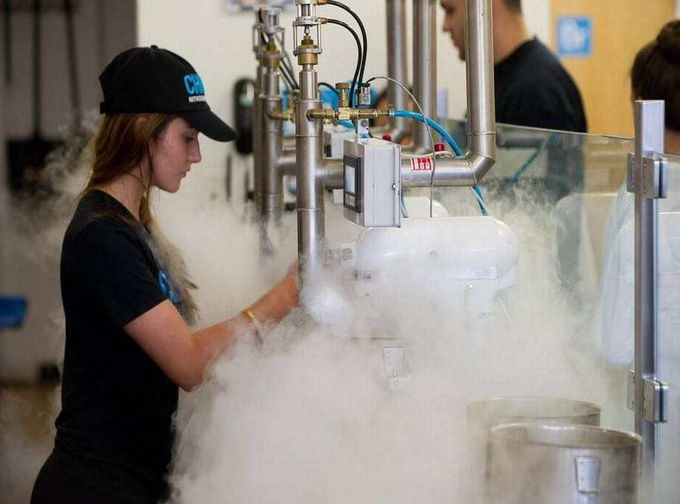

Take semiconductor fabs. When we install a Vacuum Insulated Pipe network there, our top goal is to deliver pure, high-quality liquid nitrogen right to the cryoshroud. We do this with our Vacuum Insulated Phase Separator, which pulls out any flash gas and makes sure only liquid hits the cooling interface. That stops those random temperature swings that can ruin wafers. And it works because our Vacuum Insulated Valve is built for reliability—it has long stems and thermal breaks to stop frost and leaks, even when dealing with the insane pressures you find in LNG terminals or aerospace test stands.
Not every job is huge. For labs or smaller cooling stations, we often recommend our Mini Tank and high-performance cryogenic hose. You get the flexibility to move things around, but you don’t lose the efficiency you’d expect from a rigid install. Every hose we build gets hit with serious stress-testing, so the bellows can handle thermal cycling and vibrations without ever losing the vacuum seal. That’s why medical imaging and superconducting magnets—where space is tight—rely on our hoses.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
No matter the project, we stick to the strictest global safety standards. Every system gets redundant pressure relief valves and is built with high-grade stainless steel that holds up all the way down to -269°C. We know how heat sneaks in, so we customize every pipe layout with low-conductivity supports and advanced bayonet couplings. This cuts down on solid conduction—the thing that ruins lesser hoses.
In LNG, our vacuum insulation tech slashes boil-off gas rates. That means operators keep more product during transfers, saving money straight away. Across everything we do, the core components—Vacuum Insulated Valves, Phase Separators, and Dynamic Vacuum Pump Systems—work together seamlessly. The result: a cooling environment that’s efficient, low-maintenance, and just works.
● Operational Safety Managed by Valve and Valve Box
The flow and pressure of cryogenic liquids within the HL Cryogenic vacuum jacketed pipe system are regulated using specially engineered HL Cryogenic valves. These components are designed to operate reliably under ultra-low temperatures and rapid thermal transitions.
To further enhance system safety and accessibility, each HL Cryogenic valve is housed inside an insulated HL Cryogenic valve box. The valve box protects the valve from moisture ingress, reduces frost buildup, and enables technicians to perform inspections and adjustments without disrupting the thermal balance of surrounding areas.
This compact, modular configuration also aligns well with the strict spatial limitations common in semiconductor packaging plants and cleanroom environments.
When you choose HL Cryogenics, you get a team that gets the details—how vacuum science and fluid dynamics come together for real results. Semiconductor makers hit the ultra-low, stable temps they need for mass production. Aerospace engineers get the reliability they demand for high-stakes fuel loading. Every weld, every test, every piece of equipment reflects our commitment to top-tier cryogenic engineering.
So whether you need the strength of rigid cryogenic pipe or the flexibility of a vacuum insulated hose, we’re ready to help you maximize yield and efficiency. Reach out to HL Cryogenics today, and let’s design a cryogenic system that fits your needs.
● Precision Flow & Phase Control
We build our Vacuum Insulated Valve with a special thermal break, so the actuator and stem stay at room temperature—even when the valve’s handling liquid helium or nitrogen at freezing-cold levels. This keeps the valve running smoothly and stops ice from messing with the seals or causing things to jam up. When we tie the Vacuum Insulated Valve straight into the vacuum-jacketed network, we cut out the big heat leaks you get with old-school foam insulation.
Long cryogenic piping runs into another problem: two-phase flow. To keep that under control, we use the Vacuum Insulated Phase Separator. It vents off the unwanted gas that forms as the liquid moves through the line, keeping delivery pressure steady. That way, whether you're fueling up a satellite or running a semiconductor lithography tool, your equipment gets a reliable, dense stream of liquid—just what you need for smooth operation.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
