HL Cryogenics’ approach to liquid oxygen transfer isn’t just advanced—it’s the result of years spent perfecting the art of moving some of the most demanding fluids around: things like liquid nitrogen, liquid oxygen, and LNG. Every time we design a Vacuum Insulated Pipe or a Flexible Hose, we’re chasing one main goal: block out as much heat as possible. That means picking the right materials and nailing the details inside the annular space, where the real magic happens.
It all starts with the pipe’s core. That inner conduit has to handle massive swings in temperature and still keep a tight seal—no air sneaking in, no leaks. Around that core, we use a serious multi-layer insulation system, all tucked inside a tough stainless steel jacket. This combo creates a deep vacuum barrier, and that basically wipes out the usual ways heat slips in—no convection, no conduction. The result? Liquid oxygen stays cold and stable for way longer, so you cut down on gas losses and keep costs (and your carbon footprint) in check.
But keeping that vacuum perfect over the years takes more than good materials. That’s why we built our own Dynamic Vacuum Pump System. Think of it as the backbone of the setup—it constantly checks and maintains the vacuum inside both the pipes and the flexible hoses. Where regular vacuum systems wear out or leak over time, ours holds the line at 10^-5 torr or better. Even when the tiniest molecules try to sneak out of the steel, or the environment gets rough, the system keeps everything locked down tight. And you don’t have to babysit it. The automation handles data logging and remote monitoring, so engineers always know the system’s running as it should, no matter the weather or where it’s installed.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation
Sometimes you need more flexibility—literally. That’s where our Vacuum Insulated Flexible Hose comes in. It bends where you need it to, absorbs vibration, and still holds that vacuum barrier just as well as the rigid pipes. It’s crucial for places like truck loading bays or ship-to-shore LNG transfers, where things are always moving. The hose’s inner core is corrugated for strength, and we wrap it with a reinforced braid to handle pressure. We’ve put these hoses through the wringer—cycling them thousands of times to make sure they won’t lose their vacuum or give out under stress.
In the end, HL Cryogenics delivers cryogenic transfer systems you can trust—whether you’re running an industrial gas plant or sending rockets to space. That’s what drives us: making sure your liquid oxygen, nitrogen, or LNG gets where it needs to go, safely and efficiently, every time.
Our Vacuum Insulated Valve puts you in control of flow and pressure, and it’s built to stop ice from forming or freezing up the stem—a problem that plagues most standard cryogenic valves without our vacuum tech. In a typical cryogenic setup, a regular, non-insulated valve acts like a heat magnet, pulling warmth into the system. That’s how you get ice buildup, stuck actuators, and blown seals. With our Vacuum Insulated Valve, the heat bridge is gone, so you get smooth, reliable actuation even when temperatures drop as low as -196°C.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
We offer globe, check, and regulating versions, all with a long-stem design that keeps the packing gland at room temperature. This detail matters. It means our valves last for years, barely wearing down, and you get the safety and control you need—especially in high-pressure oxygen systems and LNG terminals, where downtime just isn’t an option.

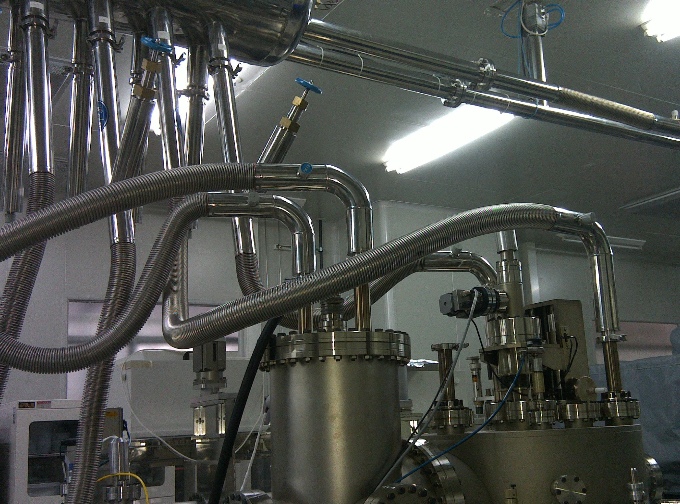

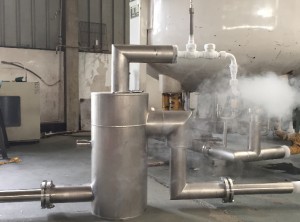

Now, about delivering pure liquid: our Vacuum Insulated Phase Separator handles flash gas, making sure your end-user gets only high-quality, subcooled liquid. Whenever pressure drops or heat sneaks in, flash gas forms. Ignore it, and you’ll see cavitation in pumps and unreliable flow readings. But with our Vacuum Insulated Phase Separator, the system vents gas in a controlled way, holds onto the valuable liquid, and keeps pressure stable. This setup is critical in semiconductor manufacturing, where even tiny changes in liquid nitrogen temperature can mess with wafer cooling.
● Operational Safety Managed by Valve and Valve Box
The flow and pressure of cryogenic liquids within the HL Cryogenic vacuum jacketed pipe system are regulated using specially engineered HL Cryogenic valves. These components are designed to operate reliably under ultra-low temperatures and rapid thermal transitions.
In semiconductors, our Vacuum Insulated Pipe and Flexible Hose systems keep nitrogen ultra-pure. In aerospace, our pipes handle lightning-fast, high-pressure rocket fueling—where those Vacuum Insulated Valves absolutely have to work without fail. Hospitals count on our Mini Tank systems and cryogenic hoses for local liquid oxygen supply, where safety and reducing boil-off mean everything for patient care and costs. Small labs get the same advanced vacuum tech as the big industrial sites, thanks to the flexible Mini Tank lineup. From slender cryogenic hoses to massive Vacuum Insulated Pipes, HL Cryogenics covers energy, medical, and research needs with total precision.
● Precision Flow & Phase Control
Tie together the Vacuum Insulated Valve, Phase Separator, and our Dynamic Vacuum Pump System, and you get a high-vacuum setup that beats global safety standards like ASME and CE. We’re always pushing for new solutions, and our Vacuum Insulated Pipe technology keeps raising the bar for liquid oxygen and LNG transfer. Clients rely on us for tools that squeeze every bit of efficiency out of cryogenic fluids. We see engineering as the path to a sustainable future—our vacuum solutions cut waste and make every drop count. If you’re looking for high-efficiency thermal management and tough, smart system design, reach out to HL Cryogenics. We’ll help you bridge that gap between complex engineering needs and real-world performance.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
