When choosing a cryogenic hose, you need to carefully consider its thermal performance, pressure rating, and how well it fits into your system. To make sure that cryogenic fluids are moved safely and efficiently, we suggest putting vacuum insulation quality, material compatibility, and long-term vacuum stability at the top of the list. The right choice has a direct effect on reducing heat loss, making the operation safer, and lowering the cost of the product over its lifetime.

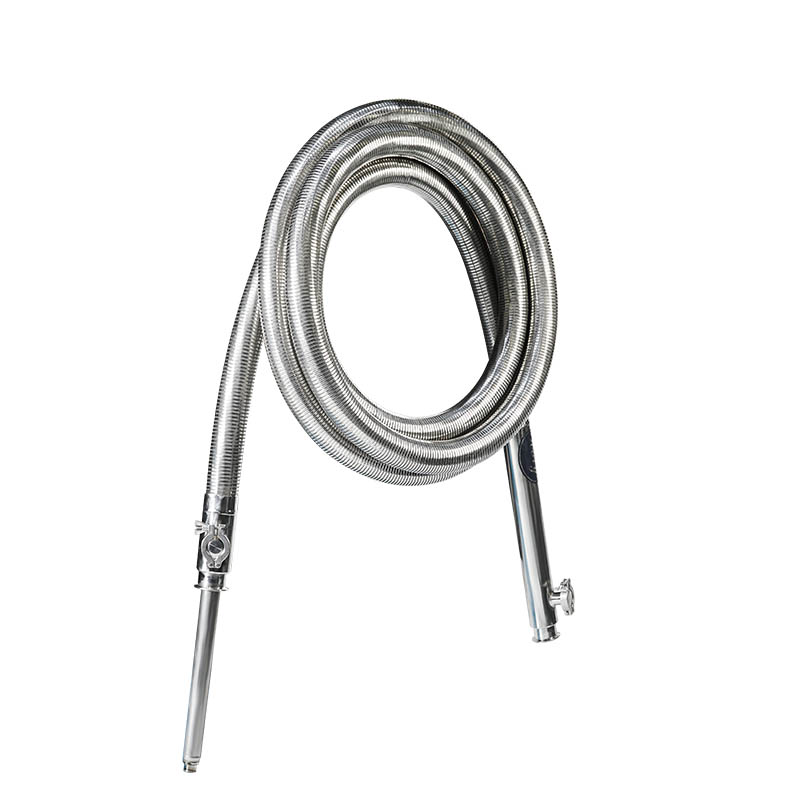

With a Vacuum Insulated Flexible Hose, you can move between fixed and moving parts without damaging the cryogenic pipe network. Flexible solutions can handle vibration, thermal contraction, and installation tolerances without affecting performance, unlike rigid Vacuum Insulated Pipe.
At HL Cryogenics, we make sure that our cryogenic hose systems work perfectly with other products, like the Vacuum Insulated Valve, Vacuum Insulated Phase Separator, and Mini Tank units. This makes sure that the whole system works well, not just one part.
The biggest engineering problem with any cryogenic transfer system is keeping heat from getting in. There are three ways that heat can move: conduction, convection, and radiation. A well-designed Vacuum Insulated Flexible Hose gets rid of convection completely by keeping a high vacuum layer between the inner and outer pipes.
We use multi-layer insulation (MLI) to cut down on radiation heat transfer even more, and we use supports with low thermal conductivity to cut down on conduction even more. Vacuum-insulated systems can cut heat loss by more than 90% compared to regular insulated cryogenic pipe. This greatly lowers the rate at which liquid nitrogen systems or LNG infrastructure boil off.
For industrial gas uses, this means lower costs and more stable processes.
Table of Contents
1. Vacuum Stability and the Role of the Dynamic Vacuum Pump System
2. Material Selection and Mechanical Design
3. Integration with Valves and Phase Control Equipment
4. System-Level Considerations for Industrial Applications
● Vacuum Stability and the Role of the Dynamic Vacuum Pump System
Long-term vacuum stability is one of the most important things to think about when choosing a cryogenic hose. Micro-leaks or outgassing can cause many systems to break down over time, which lets more heat in and makes them less efficient.
Our Dynamic Vacuum Pump System at HL Cryogenics takes care of this. This system is different from static vacuum designs because it constantly checks and maintains the vacuum level. This makes sure that the vacuum insulation works the same way for years.
This is especially important for big projects like LNG terminals in Southeast Asia or hydrogen projects in the Middle East, where it's hard to get to maintenance and downtime is expensive.
● Material Selection and Mechanical Design
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
Choosing the right materials is very important in cryogenic engineering standards. The inner pipe of a Vacuum Insulated Flexible Hose is usually made of stainless steel (like SS304 or SS316L) so it can handle very low temperatures without breaking.
The outer jacket must keep the structure strong while also keeping the vacuum tight. Flexible sections are made with corrugated stainless steel so that they can bend without putting too much stress on them.
The pressure ratings must also match what the system needs. For instance:
LNG transfer systems: usually between 150 and 300 pounds of pressure
Liquid nitrogen systems need less pressure but more stable flow.
We make sure that all of our designs meet international standards like ASME B31.3, EN 13480, and the relevant ISO standards. This gives EPC contractors and procurement teams peace of mind.
● Operational Safety Managed by Valve and Valve Box
The flow and pressure of cryogenic liquids within the HL Cryogenic vacuum jacketed pipe system are regulated using specially engineered HL Cryogenic valves. These components are designed to operate reliably under ultra-low temperatures and rapid thermal transitions.
To further enhance system safety and accessibility, each HL Cryogenic valve is housed inside an insulated HL Cryogenic valve box. The valve box protects the valve from moisture ingress, reduces frost buildup, and enables technicians to perform inspections and adjustments without disrupting the thermal balance of surrounding areas.
This compact, modular configuration also aligns well with the strict spatial limitations common in semiconductor packaging plants and cleanroom environments.
During the installation of an LNG terminal facility in Southeast Asia, we provided a hybrid of Vacuum Insulated Pipe and Vacuum Insulated Flexible Hose in a 12-km long pipeline. Our client originally experienced excessive gas evaporation owing to traditional insulation solutions.
Through the use of our vacuum insulation together with a Dynamic Vacuum Pump System, we were able to cut heat leakage by around 85 percent. This was possible because of our Vacuum Insulated Valve and Vacuum Insulated Phase Separator, which prevented vapor locks.
It was a successful case study in which choosing the correct cryogenic hose was critical.
● Integration with Valves and Phase Control Equipment
A cryogenic hose does not function in isolation; its effectiveness is highly dependent on its coordination with the rest of the equipment.

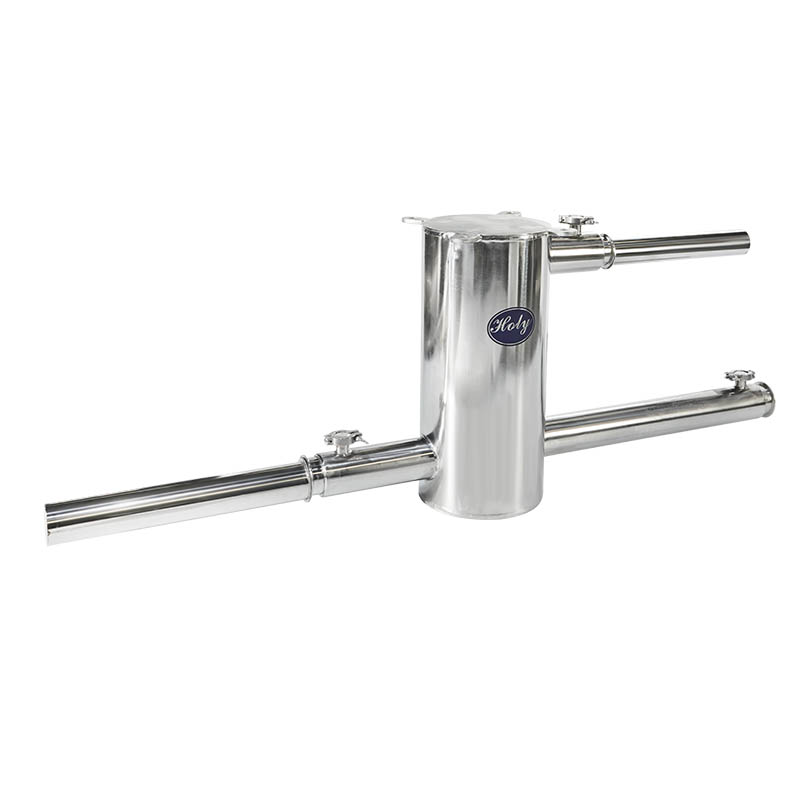

Vacuum Insulated Valves eliminate any chance of heat penetration and subsequent vaporization. On the other hand, the Vacuum Insulated Phase Separator guarantees proper phase separation before feeding end-use equipment with the liquefied substance.
This is particularly important when dealing with cryogenic systems in semiconductor plants in East Asia, as a small phase inconsistency can ruin delicate operations in the plant.
Hoses need to be considered part of an integrated cryogenic transfer system for optimal performance results.
Various sectors have various demands for cryogenic hoses.
The LNG sector, especially in South East Asia, calls for better insulation due to long distances and higher ambient temperatures. In the industrial gas plants of Europe, safety standards become a key issue for consideration.
On the other hand, in the hydrogen projects of the Middle East, the issues of permeability and materials compatibility present yet another challenge. Therefore, at HL Cryogenics, we consider seal technology and material considerations to ensure there is no leak at all.
At HL Cryogenics, we adopt a system-orientated approach where we combine Vacuum Insulated Pipe (VIP), hoses, valves, and even mini tank solutions.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
