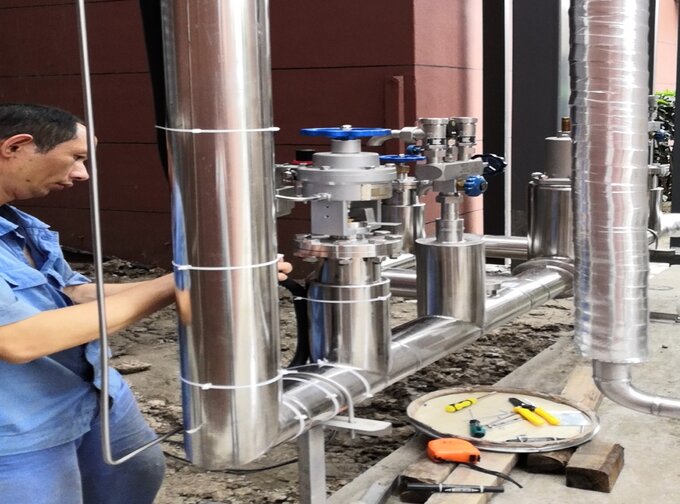

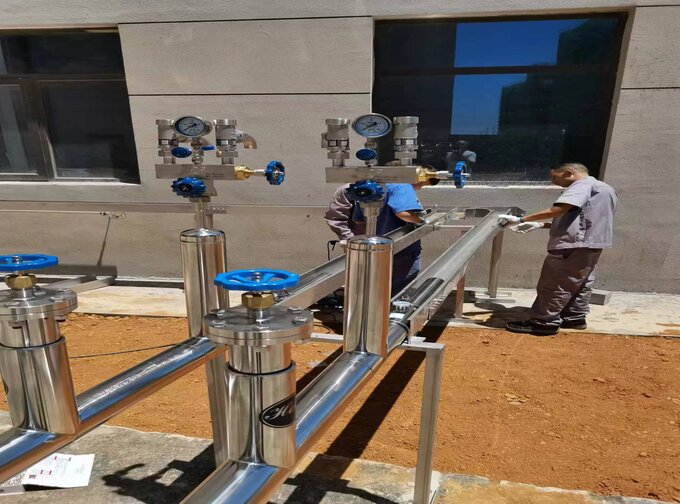

At HL Cryogenics, our mission goes far beyond simply constructing pipes; we are dedicated to engineering advanced thermal protection systems that our clients can genuinely depend on. Our Vacuum Insulated Pipe represents the forefront of cryogenic transfer technology. Unlike ordinary conduits, these pipes are meticulously designed as sophisticated thermal barriers, utilizing a deep vacuum—down to 10^(-5) mbar—between their inner and outer walls. This deep vacuum virtually eliminates heat transfer by both convection and conduction, creating a robust defense against thermal intrusion. As a result, boil-off gas (BOG) is drastically minimized during the transfer of sensitive cryogens such as liquid nitrogen or liquid oxygen, translating directly into higher efficiency, reduced losses, and improved operational safety.
However, we recognize that a vacuum-insulated pipe is only as effective as the integrity of its vacuum. Over time, even the most carefully constructed systems can experience minute leaks or gradual pressure changes, especially in the demanding environments of semiconductor fabrication plants or aerospace testing facilities. That’s why every system we deploy is paired with our state-of-the-art Dynamic Vacuum Pump System. This intelligent pump continuously monitors and maintains optimal vacuum conditions, automatically compensating for any fluctuations. With this proactive approach, your cryogenic infrastructure remains sealed and highly efficient year after year, ensuring both reliability and compliance with stringent industry requirements.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation
Recognizing that not all installations are static, we offer our Vacuum Insulated Flexible Hose—combining the same exceptional thermal insulation as our rigid pipes with the added benefit of flexibility. These hoses are engineered for environments where movement, vibration, or complex routing is necessary, such as in mobile LNG transfer or dynamic laboratory setups. Each hose undergoes rigorous testing to guarantee that its bellows and protective outer jacket withstand extreme temperature swings and mechanical stresses typical in LNG storage, transport, and industrial gas distribution.

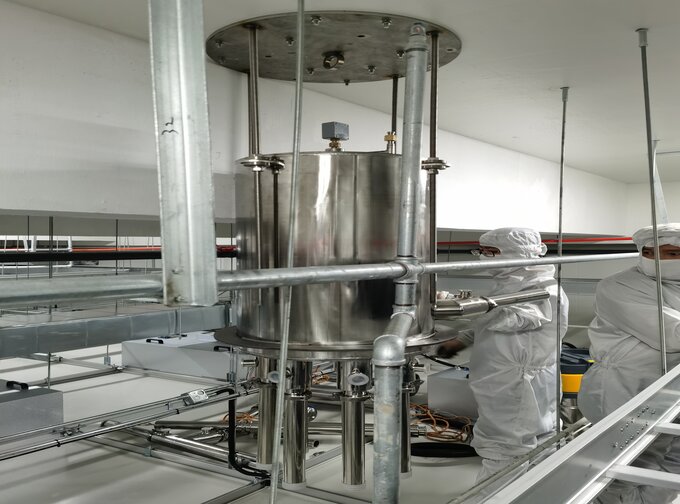

Valves play a crucial role in cryogenic systems and are often the most vulnerable points for heat ingress. Our Vacuum Insulated Valve is meticulously engineered with a low-conductivity stem and proprietary seal technology, minimizing thermal bridges and virtually eliminating leaks at these critical junctures. During operations like system cool-downs when two-phase flow (liquid plus vapor) is present, our Vacuum Insulated Phase Separator ensures that only pure liquid reaches the point of use. This is particularly vital in applications such as liquid nitrogen dosing for food preservation or medical sterilization, where consistency, efficiency, and cost-effectiveness are paramount. By delivering only pure liquid, we help our customers maximize every drop of cryogen, reducing waste and operational expenses.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
For research environments and facilities with smaller scale needs, our Mini Tanks bring the power of advanced vacuum insulation to a compact, user-friendly format. These vessels offer exceptionally low evaporation rates, supporting long-term storage of liquid nitrogen, oxygen, or other specialty gases. Researchers and technicians can rely on stable, ultra-cold storage conditions, which are essential for everything from biological sample preservation to quantum computing experiments.
What truly distinguishes HL Cryogenics is our systems-level approach, integrating Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator into cohesive, high-performance cryogenic transfer networks. Every component is designed not only for individual excellence but also for seamless interoperability, ensuring that our solutions consistently meet—and often surpass—international safety and quality standards like ASME B31.3. Whether we are designing a complex LNG bunkering station or installing a medical-grade liquid oxygen line in a hospital, our focus remains on the underlying thermal physics of the vacuum jacket. Inside every pipe, we employ advanced molecular sieves and specialized getter materials that actively absorb residual gases, preserving vacuum quality and performance as the system ages. Our Dynamic Vacuum Pump System responds instantly to even the slightest pressure changes, maintaining the integrity of the insulating vacuum layer for years of uninterrupted service.
● Operational Safety Managed by Valve and Valve Box
In the aerospace sector, precision and reliability are non-negotiable. Our Vacuum Insulated Valves and Phase Separators are engineered to deliver cryogenic fuels like liquid hydrogen or LNG with split-second timing and without any measurable thermal loss, supporting critical missions and test protocols. Every pipe, hose, and fitting we manufacture is a testament to our mastery of thermodynamics and fluid dynamics. This expertise ensures that, particularly in the LNG industry, our customers not only achieve peak efficiency but also realize substantial cost savings over the lifespan of their systems. That’s why our products are built to endure the harshest operating conditions, delivering consistent performance and reliability over many years.
● Precision Flow & Phase Control
From the initial concept sketch of a Mini Tank to the commissioning of a fully integrated Dynamic Vacuum Pump System, our dedicated team meticulously oversees every detail. We’re committed to keeping each valve, separator, and connection running at optimal performance, regardless of scale or complexity. As global demand for LNG and high-purity gases accelerates, HL Cryogenics remains at the forefront of technological advancement—constantly refining our vacuum insulation technology and setting new industry benchmarks for safety, efficiency, and longevity.
When you partner with HL Cryogenics, you’re gaining more than just cutting-edge equipment; you’re securing a committed ally who values technical precision and operational dependability as highly as you do. Our collaborative approach means we work closely with you to understand your unique requirements and deliver tailored cryogenic solutions that empower your operation. Reach out to us today, and together we’ll develop the perfect thermal protection system to support your mission—no matter how demanding the application or how high the stakes.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
