At HL Cryogenics, we understand that the integrity of a cryogenic distribution network hinges on its adaptability and resilience, particularly at its most flexible junctures. Our commitment to engineering excellence is evident in the way we have refined our Vacuum Insulated Flexible Hose, transforming it from a mere connector into a critical component capable of thriving under the most demanding industrial conditions. This hose is not just about linking equipment—it is engineered to absorb vibration, shield against mechanical stress, and maintain exceptional thermal insulation, even in environments where the stakes are highest.
In advanced industries such as semiconductor manufacturing and aerospace launch operations, mission-critical processes rely on absolute precision and reliability. Here, every hose serves as a vital bridge between static infrastructure and dynamic machinery—think of the gap between rigid pipelines and mobile vacuum chambers, or between storage tanks and delicate instrumentation. Where standard cryogenic piping would succumb to vibration-induced failures, our hoses stand the test thanks to a robust bellows-in-bellows architecture. This innovative design distributes mechanical stress and mitigates metal fatigue before it can become a problem, all while preserving an ultra-high vacuum within the hose that is essential for effective thermal isolation. By preventing heat ingress from the surrounding environment, this construction ensures that the system's cold chain remains unbroken, safeguarding both process integrity and product purity.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation
Our approach to insulation goes above and beyond industry norms. Inside each hose, multiple layers of high-reflectivity Multi-Layer Insulation (MLI) act as a formidable barrier against radiant heat transfer. This multi-layered defense is meticulously assembled to match, and in many cases surpass, the thermal efficiency of our highest-grade rigid vacuum-insulated pipes. The result is a flexible solution that does not compromise on performance, even in the most thermally sensitive applications.
Precision-driven fields like MRI system cooling and Molecular Beam Epitaxy demand more than just mechanical flexibility; they require unwavering stability in vacuum levels. For these scenarios, we frequently integrate a Dynamic Vacuum Pump System directly into the hose assembly. Unlike passive vacuum systems, this active solution continuously monitors and maintains vacuum pressures below 10^-5 mbar, compensating for any outgassing or micro-leaks that may develop over years of operation. This dynamic management is essential for applications where even minute traces of residual gas can degrade process yields, contaminate stored materials, or disrupt delicate thermal balances.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.

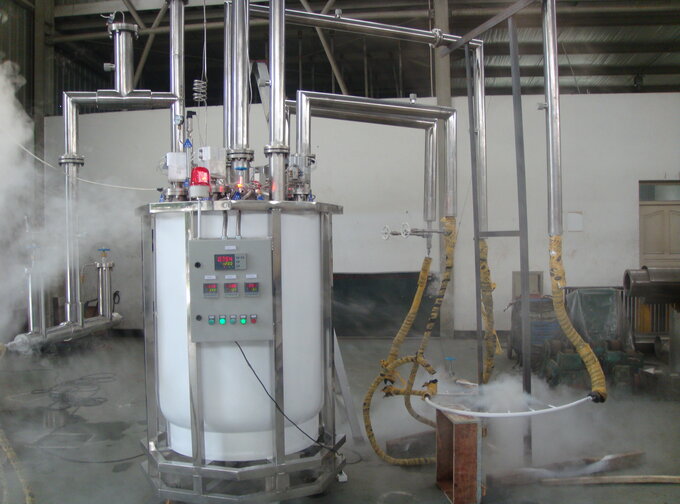

Our product ecosystem extends well beyond flexible hoses. The Vacuum Insulated Valve, for instance, delivers precise flow control without the risk of ice buildup or thermal bridging—two common pitfalls that can jeopardize both safety and efficiency in cryogenic systems. Meanwhile, our Vacuum Insulated Phase Separator guarantees the delivery of uncontaminated, gas-free liquid nitrogen precisely where it is needed, enhancing purity and minimizing losses. When paired, these components create a seamless, vibration-resistant distribution system that delivers consistent performance and preserves valuable cryogens.
● Operational Safety Managed by Valve and Valve Box
Space constraints and demanding operational requirements are realities in modern cryogenic installations. That's why we offer integration with compact Mini Tank units, which provide robust thermal insulation and storage in environments where every square meter counts. Whether the application involves fueling massive LNG terminals or maintaining pristine vacuum conditions for chip fabrication, our modular approach enables tailored solutions that can scale with your needs.
Every product we deliver is built for compliance with the world's most rigorous safety and quality standards, including ASME and CE. Our commitment to reliability is reflected in our exhaustive testing regime: each Vacuum Insulated Flexible Hose is subjected to thorough radiographic inspection and helium mass spectrometer leak detection before it ever leaves our facility. This ensures that even the smallest defect—one that could lead to catastrophic leaks or costly downtime—is identified and eliminated.
● Precision Flow & Phase Control
As global demand for liquid hydrogen and LNG accelerates, HL Cryogenics is investing in ongoing innovation. We are actively enhancing our designs to accommodate higher pressures, more extreme sub-zero temperatures, and new regulatory benchmarks. By focusing not just on performance but also on longevity and ease of maintenance, we aim to deliver solutions that contribute to safer, more efficient, and more sustainable energy and research infrastructures.
Choosing HL Cryogenics means gaining access to a comprehensive suite of cryogenic distribution technologies—vacuum-insulated pipe headers, flexible hoses, active vacuum pump systems, precision valves, phase separators, and modular storage units—all engineered to work seamlessly together. We recognize that even a single vibration-induced leak or thermal short can halt production lines or compromise scientific experiments. That is why our solutions are designed to eliminate these risks, providing you with the confidence that your operations will run smoothly and safely for years.
If you are looking to upgrade your existing cryogenic system or embark on a new project entirely, HL Cryogenics stands ready to partner with you. Our team is prepared to work closely with yours, developing custom-tailored solutions that align with your technical requirements, operational goals, and safety mandates. Let us help you build the next generation of cryogenic infrastructure—robust, flexible, and future-ready.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.
HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
