At HL Cryogenics, we know just how tough the demands are in aerospace satellite propulsion and orbital launch systems. There's no room for error, especially when you're dealing with tricky stuff like liquid oxygen, liquid hydrogen, or LNG. That's why we take thermal management seriously. Our whole engineering mindset is about fighting off heat—right down to the tiniest gap in our Vacuum Insulated Pipe designs. Every bit of the annular space gets tuned to stop heat creeping in by convection or radiation.
When we install a Vacuum Insulated Pipe network on a launch pad, we use a multi-layer insulation system. High-reflectivity foils, deep vacuum—it all works together to keep the cryogenic pipe and its contents at the perfect, sub-cooled state. At the heart of it all is our Dynamic Vacuum Pump System. This isn't just a fancy add-on; it actively maintains the vacuum, managing outgassing from materials inside the pipe. Without it, the vacuum would fade, and the whole system's reliability would tank over time.
For projects that need some flexibility or have complex layouts, our Vacuum Insulated Flexible Hose bends without losing its thermal edge. Even with heavy-duty liquid nitrogen transfers, it stays frost-free and safe for anyone working nearby. For control, we've got our Vacuum Insulated Valve with a long-stem design. It keeps the packing safe from the cold, and we pair it with our Vacuum Insulated Phase Separator to deliver clean, gas-free liquid—essential for sensitive satellite cooling or semiconductor testing. When a system gets even a little bit of gas mixed in, you risk unstable flow, and nobody wants that.
Table of Contents
1. Advanced Thermal Insulation
2. Active Vacuum Management
3. Precision Flow & Phase Control
4. Flexible Systems & Compliance
● Advanced Thermal Insulation
Whether it's a compact Mini Tank for medical labs or a sprawling Vacuum Insulated Pipe setup at an LNG terminal, we stick to the strictest global safety standards. Before a single piece gets shipped, our Vacuum Insulated Valve and Flexible Hose assemblies face tough helium mass spectrometer leak tests. We want our installations to blow past the life expectancy of what aerospace clients typically demand.
Pick a Vacuum Insulated Valve and pair it with our Dynamic Vacuum Pump System, and you get thermal efficiency that passive setups just can't touch. We've put these solutions to work everywhere—from massive LNG terminals to precise semiconductor cooling, right through to fueling spacecraft. Our Phase Separator tech keeps pressure and temperature steady, mission after mission. Every pipe and hose we build reflects our obsession with detail, and even our Mini Tanks bring top-notch insulation to smaller labs.
Adding a Vacuum Insulated Valve into the pipe system gives you real control over how the fluid moves, while the Flexible Hose stands up to the vibration and chaos of launch environments. The Dynamic Vacuum Pump System keeps pipes running at peak performance, year after year. We get it—a failure in a hose or valve at an LNG plant or semiconductor cleanroom just isn't an option. That's why our Phase Separator and Mini Tank units meet the toughest specs out there.
● Active Vacuum Management
By combining our Dynamic Vacuum Pump System, Vacuum Insulated Valve, and Phase Separator, we give you a setup that moves liquid helium efficiently and keeps costs down. Our Mini Tanks and Flexible Hoses let us handle both mobile and fixed jobs with precision.
Using our Flexible Hose with our flagship pipes creates a seamless thermal barrier, locking in the purity of your liquid. Our pump system is built to back up the valve and phase separator, fighting off sudden spikes in temperature. With every pipe we lay and every hose we send out, safety and mission success come first. Our Mini Tank and Phase Separator units have become the gold standard for satellite ground support, where pipes face all kinds of harsh atmospheric conditions.
● Operational Safety Managed by Valve and Valve Box
The flow and pressure of cryogenic liquids within the HL Cryogenic vacuum jacketed pipe system are regulated using specially engineered HL Cryogenic valves. These components are designed to operate reliably under ultra-low temperatures and rapid thermal transitions.
To further enhance system safety and accessibility, each HL Cryogenic valve is housed inside an insulated HL Cryogenic valve box. The valve box protects the valve from moisture ingress, reduces frost buildup, and enables technicians to perform inspections and adjustments without disrupting the thermal balance of surrounding areas.
The way our Flexible Hose works with fixed pipe gives launch systems the adaptability they need. We're always tweaking our Dynamic Vacuum Pump System to use less energy and keep our valve and phase separator ahead in cryogenic tech. Every Mini Tank slots right in with our hoses and pipes, creating a complete, reliable system—ready for whatever challenge comes next.
● Precision Flow & Phase Control
We build our Vacuum Insulated Valve with a special thermal break, so the actuator and stem stay at room temperature—even when the valve’s handling liquid helium or nitrogen at freezing-cold levels. This keeps the valve running smoothly and stops ice from messing with the seals or causing things to jam up. When we tie the Vacuum Insulated Valve straight into the vacuum-jacketed network, we cut out the big heat leaks you get with old-school foam insulation.
Long cryogenic piping runs into another problem: two-phase flow. To keep that under control, we use the Vacuum Insulated Phase Separator. It vents off the unwanted gas that forms as the liquid moves through the line, keeping delivery pressure steady. That way, whether you're fueling up a satellite or running a semiconductor lithography tool, your equipment gets a reliable, dense stream of liquid—just what you need for smooth operation.
● FAQS
Since 1992, HL Cryogenics has specialized in the design and manufacturing of high-vacuum insulated cryogenic piping systems and related support equipment, tailored to meet diverse customer needs. We hold ASME, CE, and ISO 9001 certifications, and have provided products and services to many well-known international enterprises. Our team is sincere, responsible, and committed to excellence in every project we undertake.
Vacuum Insulated/Jacketed Pipe
Vacuum Insulated/Jacketed Flexible Hose
Phase Separator / Vapor Vent
Vacuum Insulated (Pneumatic) Shut-off Valve
Vacuum Insulated Check Valve
Vacuum Insulated Regulating Valve
Vacuum Insulated Connectors for Cold Boxes & Containers
MBE Liquid Nitrogen Cooling Systems
Other cryogenic support equipment related to VI piping — including but not limited to safety relief valve groups, liquid level gauges, thermometers, pressure gauges, vacuum gauges, and electric control boxes.
We are happy to accommodate orders of any size — from single units to large-scale projects.
HL Cryogenics' Vacuum Insulated Pipe (VIP) is manufactured in accordance with the ASME B31.3 Pressure Piping Code as our standard.

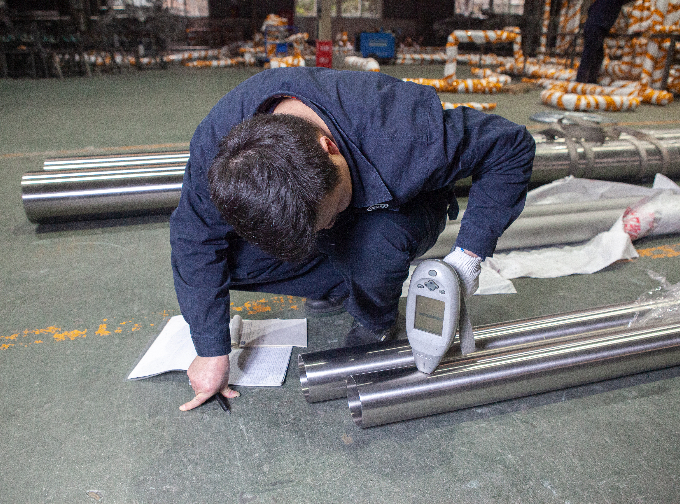

HL Cryogenics is a specialized vacuum equipment manufacturer, sourcing all raw materials exclusively from qualified suppliers. We can procure materials that meet specific standards and requirements as requested by customers. Our typical material selection includes ASTM/ASME 300 Series Stainless Steel with surface treatments such as acid pickling, mechanical polishing, bright annealing, and electro polishing.
The size and design pressure of the inner pipe are determined according to the customer's requirements. The size of the outer pipe follows HL Cryogenics' standard specifications, unless otherwise specified by the customer.
Compared with conventional piping insulation, the static vacuum system provides superior thermal insulation, reducing gasification losses for customers. It is also more cost-effective than a dynamic VI system, lowering the initial investment required for projects.
